Backblaze HDD Stats for 2018 Based on 104,778 Drives Monitored

Annualized failure rate of 1.25%, lowest by far of any year

This study was published on January 22, 2019 on the blog of Backblaze, Inc. by its director of product marketing.



Backblaze HDD Stats for 2018

As of December 31, 2018, we had 106,919 spinning HDDs. Of that number, there were 1,965 boot drives and 104,954 data drives. This review looks at the HDD failure rates for the data drive models in operation in our data centers. In addition, we’ll take a look at the new HDD models we’ve added in 2018 including our 12TB HGST and 14TB Toshiba drives. Along the way we’ll share observations and insights on the data presented and we look forward to you doing the same in the comments.

2018 HDD Failure Rates: What 100,000+ HDDs Tell Us

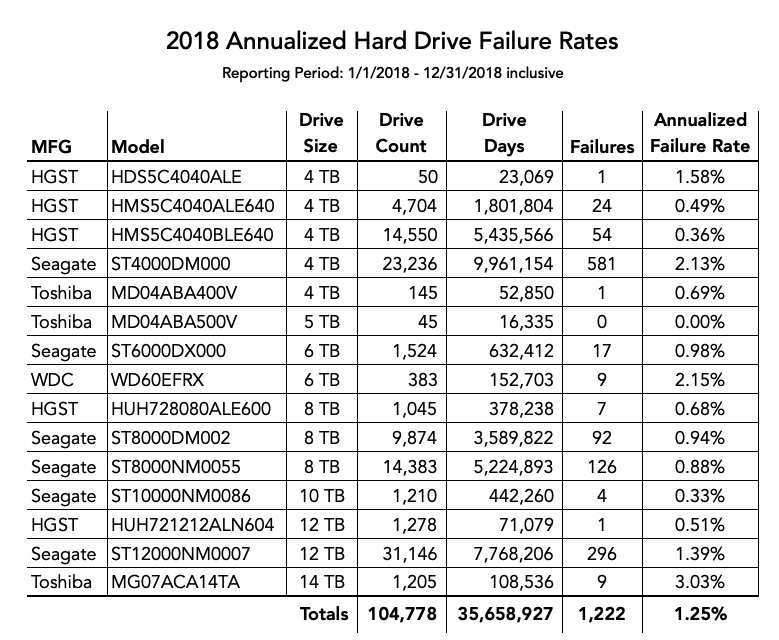

At the end of 2018 Backblaze was monitoring 104,954 HDDs used to store data. For our evaluation we remove from consideration those drives that were used for testing purposes and those drive models for which we did not have at least 45 drives (see why below). This leaves us with 104,778 HDDs. The table below covers what happened just in 2018.

Notes and Observations
If a drive model has a failure rate of 0%, it means there were no drive failures of that model during 2018.

For 2018, the Annualized Failure Rate (AFR) stated is usually pretty solid. The exception is when a given drive model has a small number of drives (fewer than 500) and/or a small number of drive days (fewer than 50,000). In these cases, the APR can be too wobbly to be used reliably for buying or retirement decisions.

There were 176 drives (104,954 minus 104,778) that were not included in the list above. These drives were either used for testing or we did not have at least 45 drives of a given model. We use 45 drives of the same model as the minimum number when we report quarterly, yearly, and lifetime drive statistics. This is a historical number based on the number of drives needed to fill one Backblaze Storage Pod (version 5 or earlier).

The AFR for 2018 for all drive models was just 1.25%, well below the rates from previous years as we’ll discuss later on in this review.

What’s New in 2018
In 2018 the big trend was HDD migration: replacing lower density 2, 3, and 4TB drives, with 8, 10, 12, and in Q4, 14TB drives. In 2018 we migrated 13,720 HDDs and we added another 13,389 HDDs as we increased our total storage from about 500PB to over 750PB. So in 2018, our data center techs migrated or added 75 drives a day on average, every day of the year.

Here’s a quick review of what’s new in 2018.
• There are no more 4TB Western Digital drives; the last of them was replaced in Q4. This leaves us with only 383 Western Digital drives remaining – all 6TB drives. That’s 0.37% of our drive farm. We do have plenty of drives from HGST (owned by WDC), but over the years we’ve never been able to get the quantity of Western Digital drives we need at a reasonable price.
• Speaking of HGST drives, in Q4 we added 1,200 HGST 12TB drives (model: HUH721212ALN604). We had previously tested these drives in Q3 with no failures, so we have filled a Backblaze Vault with 1,200 drives. After about one month we’ve only had one failure, so they are off to a good start.
• The HGST drives have a ways to go as in Q4 we also added 6,045 Seagate 12TB drives (model: ST12000NM0007) to bring us to 31,146 of this drive model. That’s 29.7% of our drive farm.
• Finally in Q4, we added 1,200 Toshiba 14TB drives (model: MG07ACA14TA). These are helium-filled PMR drives. The initial AFR is just over 3%, which is similar to the other new models and we would expect the AFR to drop over time as the drives settle in.

Comparing HDD Failure Rates Over Time

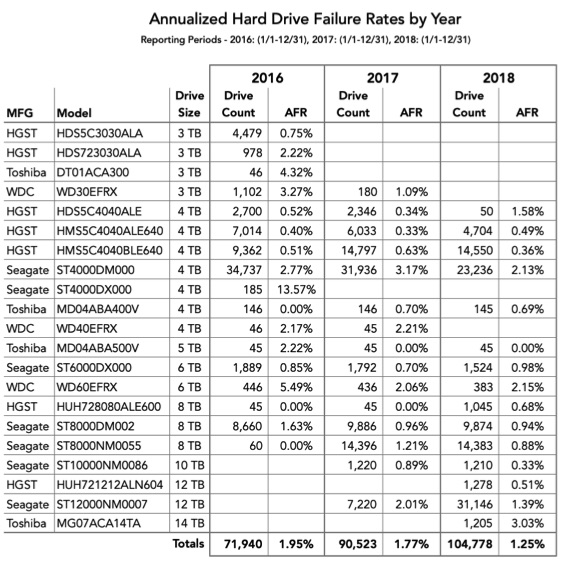

When we compare HDD stats for 2018 to previous years two things jump out. First, the migration to larger drives, and second, the improvement in the overall AFR each year. The chart below compares each of the last three years. The data for each year is inclusive of that year only.

Notes and Observations
• In 2016 the average size of HDDs in use was 4.5TB. By 2018 the average size had grown to 7.7TB.
• The 2018 AFR of 1.25% was the lowest by far of any year we’ve recorded.
None of the 45 Toshiba 5TB drives (model: MD04ABA500V) has failed since 2Q16. While the drive count is small, that’s still a pretty good run.
• The Seagate 10TB drives (model: ST10000NM0086) continue to impress as their AFR for 2018 was just 0.33%. That’s based on 1,220 drives and nearly 500,000 drive days, making the AFR pretty solid.

Lifetime HDD Stats
While comparing the AFR of HDDs over multiple years is a great way to spot trends, we also look at the lifetime AFR rates of our HDDs. The chart below is the AFR of all of the drives currently in production.
