Deutsche Radio Station Antenne Bayern Selects Qsan and DataCore

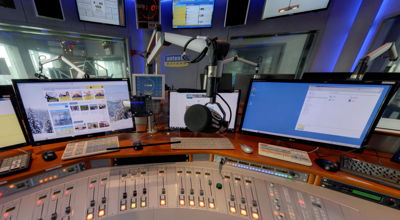

Antenne Bayern is the private radio station with the widest reach in Germany.

Since 1988 Antenne Bayern is nonstop on Air. The recipe for its success is a creative mix of music, service, information and entertainment, tailor-made for the target group from 14 to 49, spiced up with spectacular actions and an always new presentation.

The previous storage systems went end-of-life and end-of-support: Contemporary and safe FC storage systems were wanted. The requirements included, among other things, a trouble-free connection to DataCore Software Corp.‘s appliances, safe operation and reliable customer support.

Antenne Bayern chooses HA SAN-storage QSAN XCubeSAN XS5226D with Dual-Active Controller and 170TB usable capacity.

Click to enlarge

Benefits:

• Simpler management
• Higher speed
• Constant availability
• Lower costs
• Scale as requirements grow
• No hardware vendor lock

Software-Defined Storage
with DataCore-Appliances and QSAN XCubeSAN

Secure FC-Storage without Vendor-Lock
The complete radio program comes out of the PC today. The digital archive has long replaced the record and CD collections of yesteryear – as it is with Antenne Bayern. After the previous FC storage was no longer maintained by the manufacturer, a new acquisition was inevitable. Network storage requirements are: resilient, scalable, easy to maintain and cost effective.

With N-TEC GmbH on the safe side it says at Antenne Bayern. For years the as well in Ismaning-based storage specialist advises and supplies the IT department of the strongest private radio station Germany. With his customer proximity and high product quality, the company once again was beating off its competitors with solutions of well-known storage manufacturers.

Antenne Bayern was looking for new FC SAN systems. The previous arrays were not only outdated, the manufacturer also stopped the support.

“We were therefore forced to procure replacement,” remembers Michael Vogel, deputy technical director, Antenne Bayern.

Although the radio station was happy with the previous devices, they hoped for a supplier being closer in support issues and FC-storage from QSAN‘s 5200-series was chosen.

The program of a radio station runs in 24-hour operation, therefore IT has to be highly available and fail-safe. The desired storage systems should be able to be managed with performance and relatively little effort. The storage hosts all data from the radio program and the office although the broadcasts are not sent directly from the disk array. The schedule is previously copied to a local desktop drive and will be updated time and again, if there are any changes. Only in an emergency, if the local storage cannot be accessed, the SAN is started in order to maintain the broadcasting operation.

Technically, it would not be a problem to send from the storage permanently, but would also unnecessarily increase the load on the network.

In a selection process, the IT department of Antenne Bayern has tested several systems in-house. According to Vogel, all products were basically okay. However, especially the large storage manufacturers want to score with a wide range of functions, but this also needs to be paid for. QSAN systems also offer a range of enterprise functions already included with delivery.

“We are working with SANsymphony from DataCore Software and therefore do not need this functional offer,” explains Vogel.

In addition to technology features, the support is important to Vogel, which is definitely given.

“The IT manager is familiar with a certain finger-pointing and mutual blaming of suppliers. I do not need that as a customer,” says Vogel. “N-Tec has many years of DataCore expertise and therefore understands both sides. However, should problems ever arise, we certainly will get them better resolved than before. Especially since N-TEC, like us, is based in Ismaning.”

Also paid attention to: “We have confirmed that QSAN does not require any firmware changes and supports normal enterprise disks.”

With the previously used SAN storage, HDDs had to be purchased from the manufacturer only.

But now that there are no more available, it finally came to the new acquisition. In addition to a more flexible handling without manufacturer restrictions, the QSAN storage also offers a price advantage for Antenne Bayern.

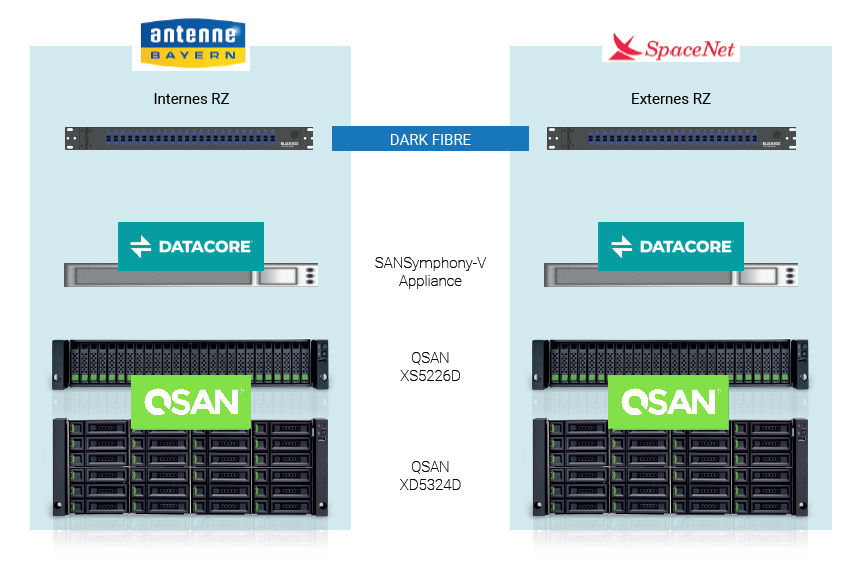

The control unit for the DataCore platform is provided by two standard servers, which are mirrored synchronously across two locations. The headquarter in Ismaning is connected via dark fiber with the recovery site at the Munich hosting service provider Spacenet. Each server runs a QSAN XS5226D FC system. Connected to each one is a JBOD expansion unit (QSAN XCubeDAS XD5324D).

Both 26-bay-FC-Arrays (XS5226D) provide Dual-Active/ Active-Controller with eight 16Gb FC- and two 10GbE iSCSI connections. The JBOD-expansion units (XCubeDAS XD5324D) are also equipped with dual controller and provide space for 24 SAS HDDs.

“With the JBODs, the storage capacity can be extended as needed,” says N-TEC’s managing director Sven Meyerhofer. “Each site has a gross data volume of around 200TB, which is made up of a mix of SAS and NLSAS HDDs.”

Nearly three-quarters of the drives used are nearline HDDs.

“The QSAN arrays run in RAID-5 mode, resulting in a net capacity of about 170TB,” explains Vogel. “Our planning is to cover the storage needs for the next 3 years.”

Vogel however describes the data increase exponential.
