R&D: Storage Using Individual Molecules by University of Basel

Working to produce tiny storage units consisting of few atoms using process of self-organization, thereby simplifying production process

Researchers from the University of Basel have reported a method that allows the physical state of just a few atoms or molecules within a network to be controlled.

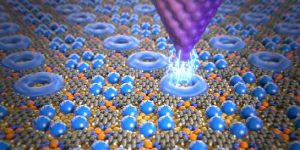

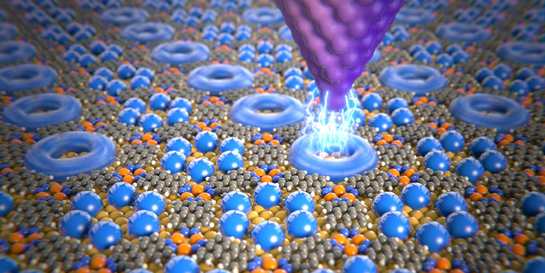

Graphic animation of a potential data storage device on the atomic scale:
a data storage element – made of only six Xenon atoms –
is liquefied using a voltage pulse.

(Illustration: Department of Physics, University of Basel)

University of Basel  storage

It is based on the spontaneous self-organization of molecules into extensive networks with pores about one nanometer in size. In the journal small, the physicists reported on their investigations, which could be of particular importance for the development of new storage devices.

Around the world, researchers are attempting to shrink data storage devices to achieve as large a storage capacity in as small a space as possible. In almost all forms of media, phase transition is used for storage. For the creation of CDs, for example, a very thin sheet of metal within the plastic is used that melts within microseconds and then solidifies again. Enabling this on the level of atoms or molecules is the subject of a research project led by researchers at the University of Basel.

Changing phase of individual atoms for data storage
In principle, a phase change on the level of individual atoms or molecules can be used to store data; storage devices of this kind already exist in research. However, they are very labor-intensive and expensive to manufacture. The group led by Professor Thomas Jung, University of Basel, is working to produce such tiny storage units consisting of only a few atoms using the process of self-organization, thereby enormously simplifying the production process.

To this end, the group first produced an organometallic network that looks like a sieve with precisely defined holes. When the right connections and conditions are chosen, the molecules arrange themselves independently into a regular supramolecular structure.

Xenon atoms: sometimes solid, sometimes liquid
The physicist Aisha Ahsan, lead author of the current study, has now added individual Xenon gas atoms to the holes, which are only a bit more than one nanometer in size. By using temperature changes and locally applied electrical pulses, she succeeded in purposefully switching the physical state of the Xenon atoms between solid and liquid. She was able to cause this phase change in all holes at the same time by temperature. The temperatures for the phase transition depend on the stability of the Xenon clusters, which varies based on the number of Xenon atoms. With the microscope sensor, she has induced the phase change also locally, for an individual Xenon containing pore.

As these experiments have to be conducted at extremely low temperatures of just a few Kelvin (below -260°C), Xenon atoms themselves cannot be used to create new data storage devices. The experiments have proven, however, that supramolecular networks are suited in principle for the production of tiny structures, in which phase changes can be induced with just a few atoms or molecules.

We will now test larger molecules as well as short-chain alcohols. These change state at higher temperatures, which means that it may be possible to make use of them,” said Professor Thomas Jung, who supervised the work.

The study is a collaboration between the Swiss Nanoscience Institute (SNI), the Department of Physics University of Basel and the Paul Scherrer Institute (PSI), Heidelberg University and Linköping University.

Resources:
Video
Research group Prof. Dr. Thomas Jung

Article:Phase Transitions in Confinements: Controlling Solid to Fluid Transitions of Xenon Atoms in an On‐Surface Network

Nano Micro Small has published an article written by Aisha Ahsan, S. Fatemeh Mousavi, Thomas Nijs, Sylwia Nowakowska, Olha Popova, Aneliia Wäckerlin, Department of Physics, University of Basel, , 4056 Basel, Switzerland, Jonas Björk, Department of Physics, Chemistry and Biology, IFM, Linköping University, , Linköping, 58183 Sweden, Lutz H. Gade, Anorganisch‐Chemisches Institut, Universität Heidelberg, 69120 Heidelberg, Germany, and Thomas A. Jung, Laboratory for Micro‐ and Nanotechnology, Paul Scherrer Institut, , 5232 Villigen, PSI, Switzerland .

Abstract: This study reports on ‘phase’ transitions of Xe condensates in on‐surface confinements induced by temperature changes and local probe excitation. The pores of a metal‐organic network occupied with one up to 9 Xe atoms are investigated in their propensity to undergo “condensed solid” to ‘confined fluid’ transitions. Different transition temperatures are identified, which depend on the number of Xe atoms in the condensate and relate to the stability of the Xe clustering in the condensed ‘phase.’ This work reveals the feature‐rich behavior of transitions of confined planar condensates, which provide a showcase toward future “phase‐transition” storage media patterned by self‐assembly. This work is also of fundamental interest as it paves the way to real space investigations of reversible solid to fluid transitions of magic cluster condensates in an array of extremely well‐defined quantum confinements.
