Micro SSD SV170-µSSD From Apacer

30 to 120GB, 560 and 460MB/s RW speeds, 16x20x1.4mm

Apacer Technology, Inc. launches the industrial 3D NAND micro SSD, SV170-µSSD, in respond to the growth in data traffic for industries.

Apacer SV170-µSSD 1808


The SV170-µSSD integrates both controller and flash memory on one single chip to minimize the size for a better compliance in network equipment, industrial automation monitoring, national defense and smart vehicle devices.

Increase in capacity
Considering the fast evolving innovation and applications of big data computing, the company applied 3D NAND technology, which had broken the limitation of physical sizes of 2D NAND solutions by vertically stacking the storage units, increases the capacity, speed and endurance at the same time. Making SV170-µSSD a smaller in size but greater in capacity solution with various capacity options from 30 to 120GB.

Shockproof, up to 560MB/s
By integrating the 3D NAND flash memory and controller chips in the same package via SiP (System in Package) process, the SV170-µSSD measures 16x20x1.4mm conforming to JEDEC MO-276 which can achieve a maximum read speed of 560MB/s and maximum write speed of 460MB/s with its 6Gb SATA interface. Complying with US military standard MIL-STD810G, the SV170-µSSD’s characteristics of shockproof, tiny and superior IO/s performance can make it a stable, heat-resistant, shock-resistant and energy-efficient solution under harsh industrial conditions.

Optimized SSD
Built-in with Page Mapping and programmable LDPC (low-density particle check) firmware technology, the SV170-µSSD increases random access speed and improves SSD lifespan. Considering the intensive writing usage scenarios which are often in industrial PC and embedded system applications, it features Over-Provisioning as default to optimize performance, alleviate memory wear and prolong SSD lifespan.

Moreover, SSDWidget and S.M.A.R.T function provide auto monitoring the health of µSSD which makes it a tiny, shockproof, performance embedded SSD solutions for all industries.

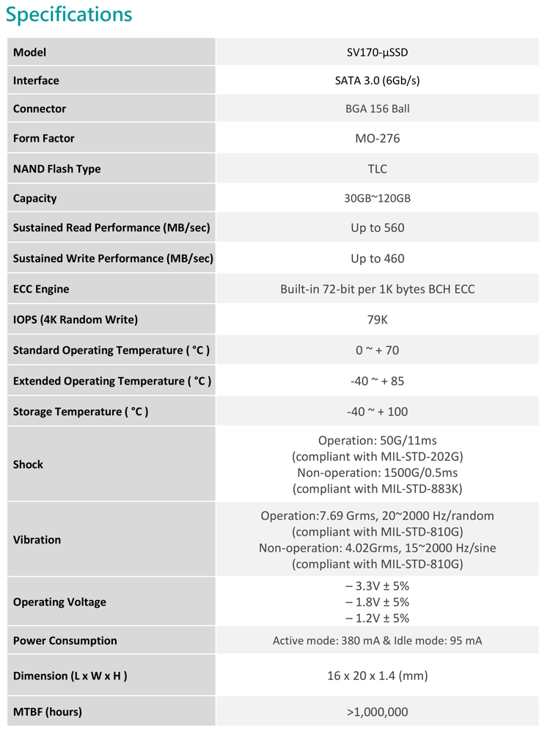

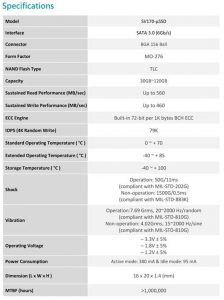

Apacer SV170-μSSD spectabl 1808
