Gigabyte Unveils Three Single-Socket GPU and Storage Servers to AMD Epyc Family

2U G291-Z20 and G221-Z30 GPU servers, and 4U S451-Z30 storage server

Gigabyte Technology Co., Ltd. add three single-socket GPU and storage servers to its AMD (Advanced Micro Devices, Inc.) EPYC family: the 2U G291-Z20 and G221-Z30 GPU servers, and the 4U S451-Z30 storage server.

Gigabyte  AMD EPYC Server Line-Up 1808SN

AMD EPYC’s single socket strengths
These three systems exemplify the benefits of AMD EPYC as a single socket system that can displace the requirement for a dual socket server, with the EPYC’s compute and I/O resources of 32 cores, 64 threads, over 2TB of memory capacity and 128 PCIe lanes per socket.

Gigabyte AMD EPYC Processor for server 1808SN

A single socket server can often be just as effective as a dual socket for many workloads, as explained in a study by Tirias Research (1): “There are few workloads that generate over 16 simultaneous threads per schedulable task or process, while most generate no more than eight threads per instance. Those running more than 16 threads per process are usually HPC workloads that are suited to offload to a GPU rather than scaling up to higher socket counts. Most workloads, such as business logic running in VMs and cloud micro services running in containers, could run as fast and economically on a 1S server as they can on a 2S server…

GIGABYTE AMD EPYS processor for Server 1808SN

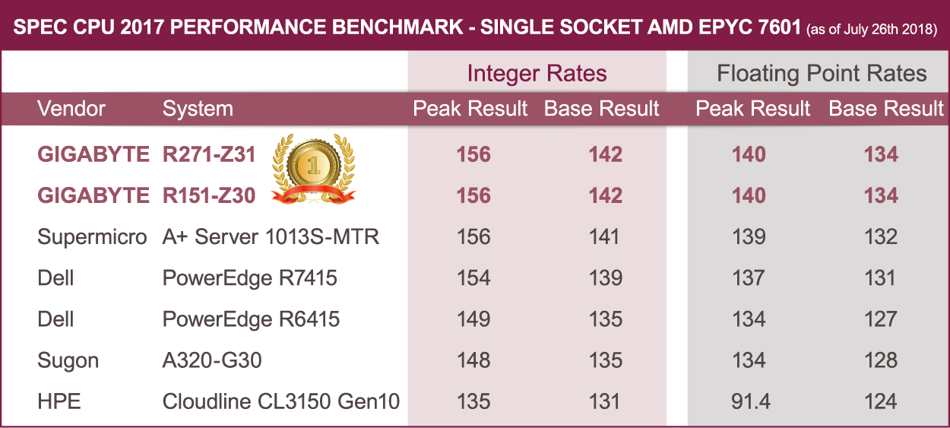

A single socket system has the potential to provide thousands of dollars of savings on software licensing when per processor software licensing costs are taken into account. And the company has recently demonstrated that its server design is optimized for EPYC by achieving the top score of the SPEC CPU 2017 benchmark for AMD EPYC single socket (*) systems.

GIGABYTE  AMD EPYC Server Line-Up TABL1 18080SN

(*) Gigabyte R271-Z31 and R151-Z30 achieved highest SPEC CPU 2017 performance benchmark for single-socket AMD Naples platform vs other vendors as of July 2018

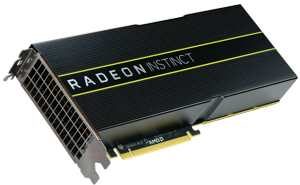

AMD Radeon Instinct MI25 GPU support

GIGABYTE  Radeon Instinct MI25 GPU for server 1808SN
Both the G291-Z20 and the G221-Z30 are compatible with AMD’s Radeon Instinct MI25 GPU, one of the fastest accelerators. The MI25 can deliver up to 24.6TFLOPS of FP16 and 12.3TFLOPS of FP32 peak performance, and features large BAR (Base Address Register) support for multi-GPU peer to peer communication. Combining AMD’s CPU and GPU solutions together with its ROCm open software platform allows for enhanced synergy and optimization, delivering a compute solution with lower latency to meet the challenges of HPC.

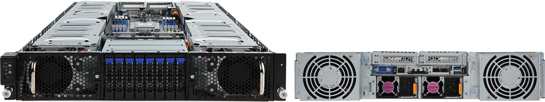

G291-Z20 GPU server

GIGABYTE G291-Z20 GPU Server 1808SN

The G291-Z20 is able to support up to eight dual slot GPGPU cards in a 2U form factor chassis. This industry GPU density is possible to the company’s unparalleled expertise in mechanical and thermal engineering, as the internal layout of the chassis has been designed to maximize airflow through the GPU bays. High GPU density makes the G291-Z20 is for HPC applications such as real time analytics, programs in scientific simulation and modeling, engineering, visualization and rendering, data mining, and more.

The G291-Z20 also features dual onboard M.2 ports for high speed flash storage devices, eight 2.5″ hot-swappable HDD/SSD bays, dual SFP+ 10Gb/s networking ports (upgradable to 25Gb/s) as well as two PCIe x16 half-length low-profile slots in the rear to add additional expansion options such as high-speed networking or RAID storage cards.

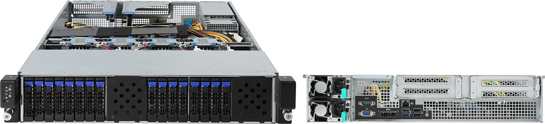

G221-Z30 GPU server

GIGABYTE G291-Z20 GPU Server 1808SN

The G221-Z30 has a capacity for two dual slot GPU cards, making it a validation platform for the Radeon Instinct MI25 GPU. One of the dual slot (one PCIe x16 slots FHFL + one PCIe x 8 FHHL) expansion ports could also be used for a high speed networking card instead. The G221-Z30 also combines GPU support with storage capabilities with 16×2.5″ SATA/SAS hot-swappable HDD/SSD bays and an onboard M.2 port for a high speed flash storage device, as well as featuring dual SFP+ 10Gbs networking ports, making it a multi-purpose, flexible and cost efficient HPC solution for R&D.

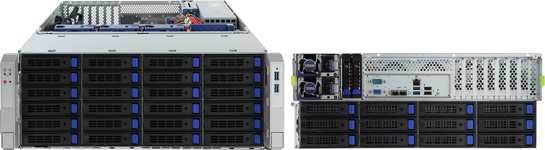

S451-Z30 storage server

GIGABYTE S451-Z30 Storage Server 1808SN

Meanwhile, the S451-Z30 offers a flexible option for storage server requirements. A capacity of 36×3.5″ drives (24 in the front and 12 in the rear) for up to 500TB of storage capacity allow for a scale-out, add as you go system for a software-defined storage cluster, while an additional 2x2x2.5″ hot-swappable HDD/SSD bays in the rear for OS boot disks also allow the S451-Z30 to be utilized as a stand-alone storage device. A SAS expansion card has not been included as standard, allowing the company or the customer to select their own HW or SW RAID card that is most suitable for their individual requirements.

The S451-Z30 also features an onboard M.2 port for a high-speed flash storage drive, dual 10Gbs SFP+ LAN ports for high speed networking connectivity, as well an additional three PCIe Gen3 x16 slots and three PCIe Gen3 x8 slots for a wealth of expansion options.

The company’s expertise and experience in system design leverages and optimizes EPYC’s benefits to offer to customers three versatile products on-point to meet their needs for HPC and storage that also feature ease of management and maintenance as well as power and cooling efficiency.

(1) Tirias Research, AMD EPYC Empowers Single-Socket Servers, May 16, 2017
