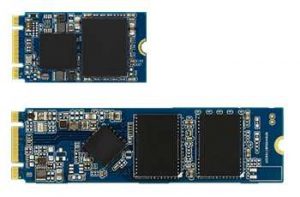

Apro Phanes-K Series MLC M.2 2242/2280 6Gb SATA SSD
8 to 256GB for M.2 2242 SATA III SSD, and 8 to 512GB for M.2 2280 6Gb SATA SSD, up to 550MB/s and 490MB/s sequential RW
This is a Press Release edited by StorageNewsletter.com on August 8, 2018 at 2:48 pmAPRO Co. Ltd. announce PHANES-K Series MLC M.2 2242/2280 SATA III SSD (MDS).
PHANES-K Series MLC M.2 2242/2280 SATA III SSD (MDS) provides high capacity flash memory SSD that electrically complies with SATA Revision 3.1 standard and also compliant with the standard Next Generation Form Factor (NGFF) called M.2 Card Format, which is generated by Intel Corp.
It supports several flash management features, including S.M.A.R.T, TRIM and Native Command Queuing (NCQ) which is designed to improve performance and reliability as the transactional workload increases on SATA SSD.
In addition, the LDPC (Low Density Parity Check) error correcting code (ECC) has been implemented on the 2242/2280 SATA III SSD, leading to a reduction in data errors and an increase in data integrity.
It provides advanced Static and Dynamic Wear Leveling algorithm, which can efficiently spread out the flash usage through the whole flash media area. Moreover, by implementing both dynamic and static Wear Leveling algorithms, the life expectancy of the NAND flash is greatly improved.
The 2242/2280 SATA III SSD reaches high sequential R/W speed of 550MB/s (maximum) and 490MB/s (maximum). The standard grade supports an operating temperature from 0°C to +70°C. As an option, the whole series also supports a temperature range from -40°C to +85°C to be used in harsh environments.

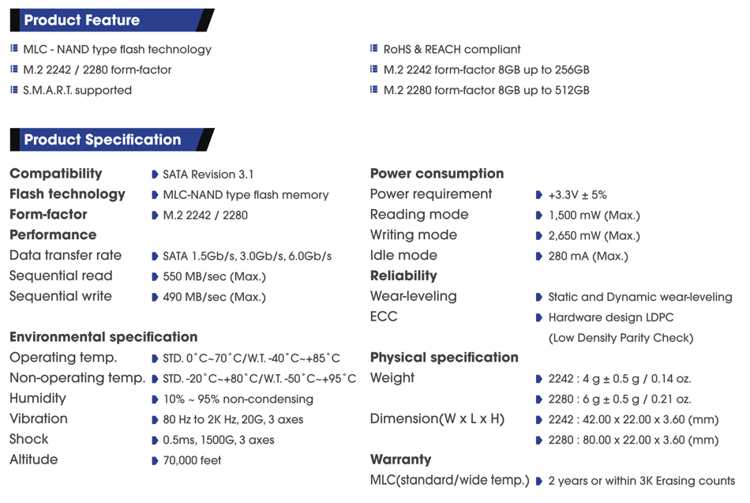

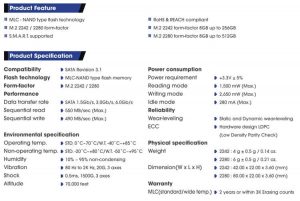

Available capacities are as follows:
-
PHANES-K MLC M.2 2242 SATA III SSD: 8, 16, 32, 64, 128, 256GB
-
PHANES-K MLC M.2 2280 SATA III SSD: 8, 16, 32, 64, 128, 256, 512GB
