FMS: Western Digital Ultrastar DC SS530 2.5-Inch SAS SSD Up to 15TB

Western Digital Corporation (WDC) introducd the Ultrastar DC SS530 SAS SSD, the company’s highest-density drive and a dual-port SAS SSD, enabling server and storage array manufacturers to offer customers substantially lower data center TCO for fast data applications.

By doubling maximum capacity of the previous generation to 15.36TB within the same 2.5-inch 15-mm form factor, drive storage density also doubles, giving IT managers the potential to reduce the number of drives deployed, consolidate servers and open up valuable rack space for improved CapEx and OpEx costs.

Developed in partnership with Intel Corp., the Ultrastar DC SS530 is based on a third-generation platform that has been previously qualified at most major OEMs worldwide. It offers performance and reliability to meet the demands of today’s toughest data center workloads. Designed with a 12G SAS interface, and available in capacities from 400GB to 15.36TB, the Ultrastar DC SS530 delivers up to 440,000 random read and 320,000 random write IO/s – providing rapid access to ‘hot’ enterprise data for higher productivity and operational efficiency.

“Our proven history has garnered trust from leading server and storage system providers around the world. Through these partnerships we have deep expertise in tiered storage needs as well as the importance of delivering the highest reliability, cost-efficiency and ease of system integration,” said Ulrich Hansen, VP, enterprise product management, Western Digital. “With the Ultrastar DC SS530, we are releasing another high-quality product designed to meet the needs of our customers. Built on 64L 3D TLC NAND, the Ultrastar SS530 delivers important advances in performance and power efficiency. Combining these improvements with the reliability that our Ultrastar drives have become known to represent enhances the value we deliver to the market.“

“For the past decade, our partnership with Western Digital has resulted in producing world-class SAS solutions, and this new Ultrastar SAS SSD is no different,” said Bill Leszinske, VP, strategic planning, marketing and business development, Intel. “Using Intel technology, Western Digital is able to deliver new improvements and features for their SAS SSD product line that will help their enterprise customers meet the demands for reliability, capacity and performance while reducing space, power and cooling costs.“

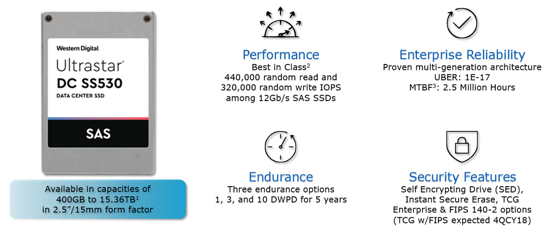

Ultrastar DC SS530 features and specs:

Supports a range of workloads with three endurance options: one, three and 10 DW/D
Provides flexibility to tune performance and power efficiency with three power modes: 9, 11 and 14W
Helps protect data from unauthorized use and enables swift repurpose or retirement of drives with security options, including Secure Erase (SE), Instant-Secure Erase (ISE) and Self-Encrypting Drive (TCG SED). Models with TCG SED plus FIPS 140-2 validation are expected to be available in Q4 2018.

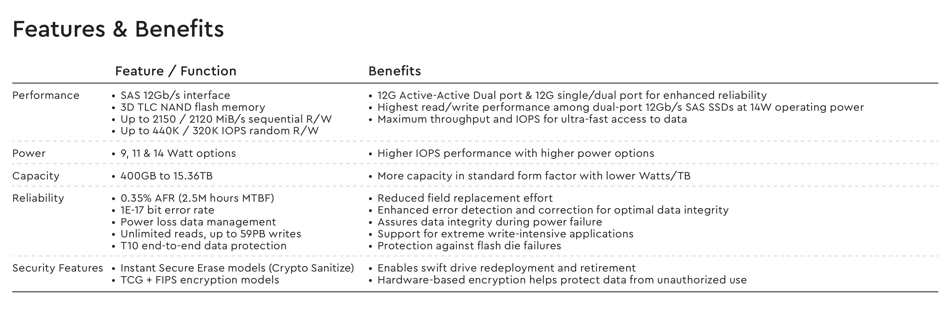

Click to enlarge

The company is currently shipping Ultrastar DC SS530 samples to select OEMs with broader availability later this quarter.

This drive further expands the firm’s range of enterprise storage solutions, which include performance NVMe SSD devices, HelioSeal enterprise HDD drives as well as SAS and SATA SSD devices, IntelliFlash all-flash arrays, ActiveScale object storage systems, and Ultrastar storage servers and platforms.
