Swissbit Adds 128MB M-120 Industrial-Grade Multimedia Card

The race is on for the highest density SD memory cards. Consumer products with 512GB can be purchased online, and higher densities are coming to market.

Swissbit AG announced the introduction of a brand 128MB Multimedia Card (MMC) named M-120 that extends the availability of low density products at the other end of the capacity scale.

Multimedia cards are similar to SD memory cards and are compatible with SD card slots. The reverse is not possible since MMCs have a thickness of 1.4mm while SD memory cards use a 2.1mm housing. A lot of industrial applications like train control or automation systems have been designed with MMC slots and require the thinner package for maintenance replacement.

With the M-120, the firm prolongs the availability of an industrial grade MMC up to 2021 and offers extended support beyond this date. The capacity of 128MB is more than sufficient for the applications that typically run from the media. It uses SLC NAND and is available with industrial temperature grades between -40° and 85°C.

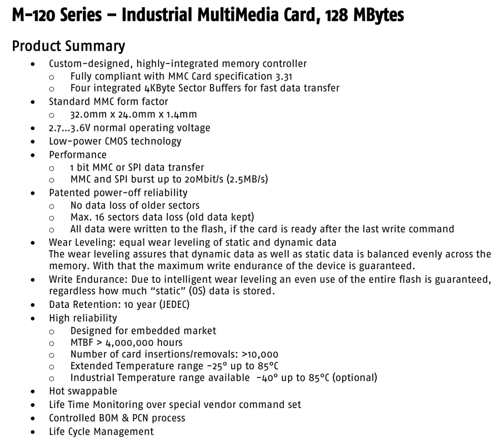

The card supports MMC and SPI burst mode according to MMC card specification 3.31. The M-120 has been developed for embedded applications using the company’s COB process which integrates the silicon dies in a fully molded package. This creates a robust and environmentally sealed package.

M-120 is available in mass production.
