SuperMicro: New Look All-Flash NVMe 1U SuperServer and 1U JBOF

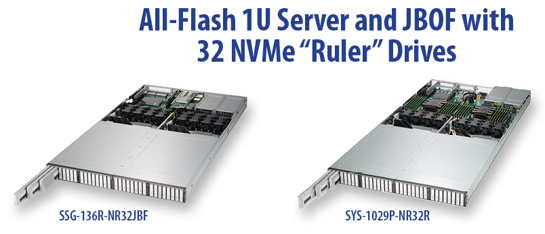

Super Micro Computer, Inc. announced availability of a new look all-flash NVMe 1U SuperServer and 1U JBOF (Just a Bunch Of Flash) that support 32 front loading hot-swap Intel ‘Ruler’ form factor NVMe SSDs.

The Intel Corp.‘s SSD DC P4500 in the ‘Ruler’ form factor, which looks like a 12-inch ruler, is thermally optimized to require up to 55% less airflow than a traditional 2.5-inch U.2 SSD. The DC P4500 series in the ruler form factor supports cloud storage and software-defined infrastructures and allows for scaling higher capacity per SSD and fitting more SSDs per server to deliver increased storage density (terabyte per rack unit).

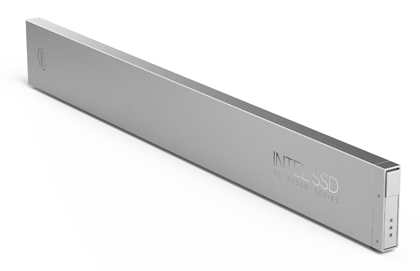

Intel Ruler SSD

Leveraging the ruler form factor, the company’s 1U NVMe systems provide a more thermally optimized high-density, performance all-flash storage solution compared to previous all-flash storage technologies. Optimized for storage density, these systems support front hot-swap accessibility to 32 ruler drives for up to 256TB of fast low-latency NVMe storage in 1U.

“Our new all-flash 32 hot-swap ‘Ruler’ drives in a high-density 1U system design is the latest example of how Supermicro continues to lead the way for NVMe technology,” said Charles Liang, president and CEO, Supermicro. “With more than triple the all-flash storage density of previous 1U solutions, this Supermicro system will take us to petabyte scale in a single 1U system in the near future. This new JBOF supports flexible configurations with up to twelve hosts or head nodes and extremely high data transfer throughput up to 64GB/s.“

This 1U all-NVMe storage server and JBOF disaggregate storage into shared pools that are rapidly becoming the preferred hardware infrastructure for demanding big data analytics applications such as autonomous driving and real-time financial fraud detection. Up to 12 hosts can be directly connected to the 1U pooled NVMe storage.

Alternatively, for customers who want to deploy an NVMe over Fabric (NVMeoF) solution, hundreds of hosts can be connected to the pooled high-performance NVMe storage over Ethernet. The 1U all-NVMe storage servers and JBOF solutions help maximize performance storage resource utilization and reduce the datacenter footprint resulting in lower TCO.

The firm’s all-flash 32 drive NVMe 1U system supports the Ruler form factor SSDs, and also standard U.2 SSDs to offer customers greater storage flexibility.

This 1U system will support a half petabyte of NVMe storage capacity this year and a full petabyte early next year using the EDSFF standard.

The system comes standard with redundant hot-swap cooling fans and power supplies along with tool-less drive trays for increased serviceability and redundancy. For accessibility, the solution supports remote system on/off and system management as well as remote power cycling for each individual drive.
