Cepoint: RM1701m 1U 40GbE 12-Bay NAS Server

Cepoint Networks LLC‘s 1U thin 40GbE NAS server in a data center Infrastructure is  a 110V DC or AC off-grid powered NAS storage servers renewable energy computing.

For renewable energy, electrical off-grid and low power 24/7 data center operations environment If you want to bring super computing performance to your IT infrastructures coupled with large volume of data streaming at low cost NAS server price, the company’s 40GbE RM1701m will just do so with no hassle.

Organizations and enterprises that require 24/7 critical uptime for their services with large volume data flow now do realize the importance of servers with high bandwidth network ports, renewable energy, off-grid electrical power availability and use of low power equipment and battery backup computing systems. Reliable energy saving 48V, 72V DC and 110V DC battery powered NAS servers such as the firm’s high capacity, RS-1700 series 110V DC battery powered 8-or 12-bay 1U NAS storage server solution for 24×7 NAS storage or general purpose computing usage comes into place.

This Xeon storage or general purpose computing servers in pizza box size is capable of holding up to 48TB raw capacity, runs off AC or battery DC power supply. Since the company launched the high capacity, RS-1700 series 36V-110V DC powered 12-bay 1U NAS storage server for 24×7 NAS storage for off-shore unstable or low power grid data centers, the firm has expanded the line to include other versions in 2U or 4U with high processing power and storage. All versions can run in Windows or Linux operating software environment.

Enterprise entry-level 1U 12-bay NAS storage solution
The Telco carrier grade, NEB’s compliant platform RS-1700 series storage server system scales to thousands of terabyte capacity and expands beyond initial configuration without taking down the system. A fully configured unit is scalable without any hassle of down time or delayed deployment. This system is suitable for other real-time mission-critical applications in telecommunications environment, such as large scale VoIP, telephony and campus wide data warehouse.

Multiple RAID capable
These systems supports RAID levels 0, 1, 1EE 3,10, 5, 5EE, 6, 50, 60, and with all its equipped features, RS-1700 is deployable as a NAS, iSCSI SAN or FC SAN or stripped down JBOD depending on required application needs and environment, thus making R1700 a configurable or re-configurable unified enterprise storage solution. This saves enterprises and their IT departments thousands of dollars and deployment headaches otherwise would have been incurred or encountered in tinkering or trying to adapter different or varied solutions from multiple vendors.

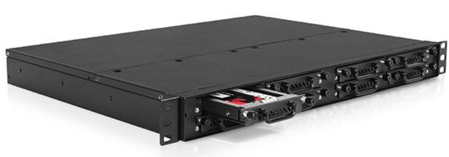

40GbE industrial storage NAS: Model RM-1701m

• 1U rugged 4-bay NAS network storage server

• P/N: 1701425-0X

• Specifications/salient features:

• Rugged 1U 19″ rackmount NAS storage system

• RAID-1 (disk mirror) – enabled

• FTP server – enabled

• Rack mountable 1U enclosure with at least four hot swappable 6Gb SAS3 2.5-inch HDD bays, hot swappable 6Gb SATA3 2.5 inch drives, 115/240V AC, 300W or larger power supply , and rack mounting kit

• Xeon C2550 processor series

• 0TB Expandable to 32TB

• RAID-1 (disk mirror), 0, 1, 5, configurable

• 8GB of DDR4 2133 mega Hertz (MHz) error correcting code (ECC) memory

• Two RJ-45 GbE LAN ports including Teaming

• IEEE 802.3ad Link (LACP) compliant

• Four RJ-45 10GbE ports

• One RJ-45 IPMI LA port

• Load balancing

• Port failover and wake-on-LAN manager

• SMB/CIFS/NFS/AppleTalk/SCSI/FC/ZFS protocol

• Remote system management

• Remote boot and reset

• Remote image mounting

• Complete remote system monitoring and diagnostics

• SNMP support

• Fully turnkey Plug-n-Play ready. NAS

• Fully assembled and tested

• Automatic drive removal/and insertion

• Automatic drive rebuild

• 19″ (1.75″ 1U) rackmount design

• Dimensions: 19″W x1.75″H x 20″D

• Spare removable NAS drive module (drive not included)

• iSCSI and hot-plug drive support

• Volume snapshot volume replication

• Unlimited TB LUN per RAID controller

• WebBIOS based GUI management utility

• Remote configuration, monitoring and notification

• Cables and accessories included

• Industrial IT data center and enterprise telecom environment ready

• Compatible OS software: RHLE 6.0

• Windows 7-PRO/Ultimate, Win 8.1, Windows 10

• Windows Server 2003/2008/2012/2016 Server.

• Enterprise server series, all Linux O/S and Unix O/S variants and derivate.

• Notation:

  • Unit comes in a 110V/240V AC or 72V/110V DC powered.

  • Made in USA

  • Standard warranty: 12 months free
