Silicon Motion Expanded Portfolio of PCIe NVMe SSD Controllers

With the new SM2262 and SM2263 series, Silicon Motion Technology Corporation provides PCIe G3 x 4 Lanes NVMe 1.3 controllers while supporting the 3D NAND from the main flash manufacturers.

The expanded line-up of SSD controller solutions meets a range of market requirements, from high-performance SSDs to compact SSDs embedded in portable devices and robust SSDs for use in industrial and automotive applications.

SM2262 Ultra High Speed SSD Controller

The SM2262 is 8-channel high-performance PCIe Gen3 x4 SSD controllers for high-end client SSDs. It features four 8Gb/s lanes (PCIe Gen3 x4) of simultaneous data flow coupled with eight NAND channels supporting up to 2TB capacities. It delivers sequential read and write transfer speeds of up to 3,500MB/s and 3,000 MB/s, respectively, and random read and write IO/s of up to 370,000 and 300,000. By optimizing hardware and software to take advantage of PCIe 3.1 and NVMe 1.3 SSD specifications, the SM2262 solution delivers performance, better reliability, and low-power PCIe SSD solutions.

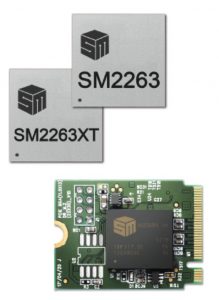

SM2263XT DRAM-less SSD Controller

The SM2263XT supports DRAM-less designs enabling SSD manufacturers to produce compact 11.5mmx13mm BGA SSDs at a lower BoM cost, as well as supporting the Host Memory Buffer (HMB) architecture. The DRAM-less SM2263XT maintains a 2,400MB/s maximum sequential read speed, and a maximum 1,700MB/s sequential write speed.

For automotive industry

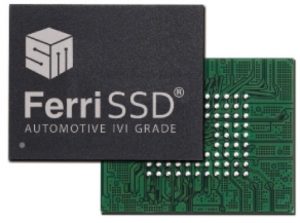

The company is able to give users of its AEC-Q100 qualified FerriSSD and Ferri-eMMC products confidence that they will meet the automotive industry’s uncompromising requirements for reliability and long operating lifetime.

Features of the Ferri family products which enhance the data integrity, longevity and performance of SSD boot loaders include:

100% screening of every cell, page and block and comprehensive quality control before shipping, resulting in low defective parts per million (dppm) rates
End-to-end data protection with NANDXtend ECC technology to extend operating lifetime
IntelligentScan and DataRefresh, a technology which pre-empts bit loss and prolongs data retention
