Apeiron: ADS1000 Native NVMe Networking Available With Optane 2.5-Inches U.2 SSD

Apeiron Data Systems, Inc. announced the qualification and availability of Intel Corp.‘s Optane technology in the 2.5″ U.2 format.

The company provides native NVMe networking, which means NVMe drives of any type and from any supplier can be used in the same storage enclosure(s). The option to aggregate multiple Optane drives in a performance NVMe network means optimization of the server environment. A standard 1U server can accommodate only two Optane Add In Cards (AIC’s).

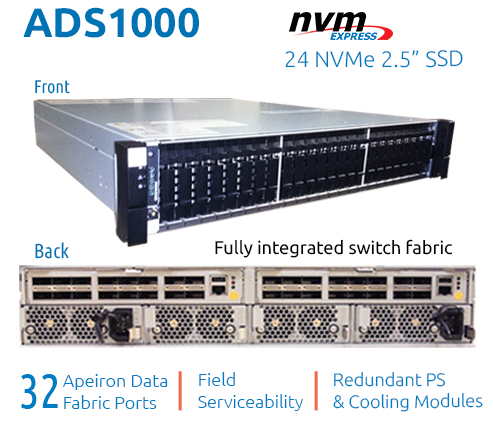

Firm’s externally attached Optane enables the customer to ‘pool’ more drives per server, and present them across the environment from a single device. Each ADS1000 enclosure provides up to 24 NVMe drives in a 2U form factor, this includes an integrated switched fabric with 32 ports of native NVMe over Ethernet connectivity. Each enclosure can be networked together to build a massively scalable ‘grid’ of both Optane and NAND NVMe SSDs, coexisting in the same enclosures.

Jeff Barber, chief revenue officer and VP marketing, Apeiron, says: “The ability to pool and share Optane is absolutely unique to the industry, and has massive implications to environments such as HPC, Spark and video services. The consistency of Optane’s write performance coupled with the ADS1000’s scalability changes the conversation about how this memory class drive technology can be used. The customer is no longer constrained by the physical limitations of the AIC form factor in a server. The ability to pool and grow this memory class storage to PetaByte scale via a robust NVMe network provides new options for Optane. One example would be to pool and share Optane across the environment as a high-speed cache layer, with all the safety of persistent storage.“

Click to enlarge

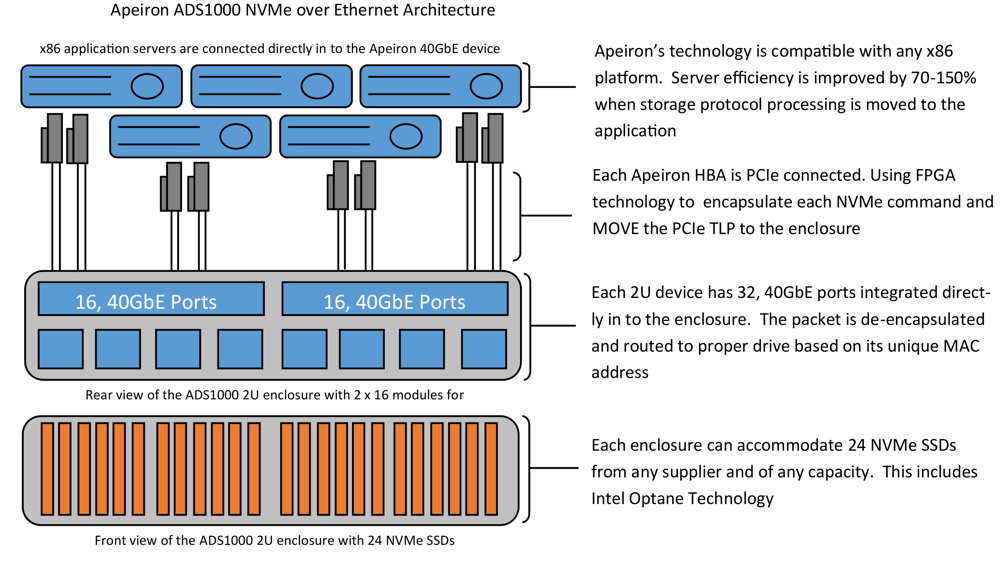

The ADS1000 provides a native NVMe over Ethernet storage network. Storage management is moved to the application server instead of an embedded/proprietary controller. This results in the elimination of the #1 bottleneck to server and storage performance. An integrated storage network is integrated, which transports and acknowledges the transactions in under 3.0μs. The fact that there is no protocol processing on the device means 100% linear scalability. The system simply looks like captive storage to the application.
