R&D: Major Leap Towards Storing Data at Molecular Level

From University of Manchester

From smartphones to supercomputers, the growing need for smaller and more energy efficient devices has made higher density data storage one of the most important technological quests.

Now scientists at the University of Manchester have proved that storing data with a class of molecules known as single-molecule magnets is more feasible than previously thought.

The research, led by Dr David Mills and Dr Nicholas Chilton, School of Chemistry, is being published in Nature. It shows that magnetic hysteresis, a memory effect that is a prerequisite of any data storage, is possible in individual molecules at -213 °C. This is tantalisingly close to the temperature of liquid nitrogen (-196 °C).

The result means that data storage with single molecules could become a reality because the data servers could be cooled using relatively cheap liquid nitrogen at -196°C instead of far more expensive liquid helium (-269°C). The research provides proof-of-concept that such technologies could be achievable in the near future.

The potential for molecular data storage is huge. To put it into a consumer context, molecular technologies could store more than 200 terabits of data per square inch – that’s 25,000GB of information stored in something approximately the size of a 50p coin, compared to Apple’s latest iPhone 7 with a maximum storage of 256GB.

Single-molecule magnets display a magnetic memory effect that is a requirement of any data storage and molecules containing lanthanide atoms have exhibited this phenomenon at the highest temperatures to date. Lanthanides are rare earth metals used in all forms of everyday electronic devices such as smartphones, tablets and laptops. The team achieved their results using the lanthanide element dysprosium.

Dr Chilton says: “This is very exciting as magnetic hysteresis in single molecules implies the ability for binary data storage. Using single molecules for data storage could theoretically give 100 times higher data density than current technologies. Here we are approaching the temperature of liquid nitrogen, which would mean data storage in single molecules becomes much more viable from an economic point of view.“

The practical applications of molecular-level data storage could lead to much smaller hard drives that require less energy, meaning data centres across the globe could become a lot more energy efficient.

For example, Google currently has 15 data centres around the world. They process an average of 40 million searches per second, resulting in 3.5 billion searches per day and 1.2 trillion searches per year. To deal with all that data, in July last year, it was reported that Google had approximately 2.5 million servers in each data centre and that number was likely to rise.

Some reports say the energy consumed at such centres could account for as much as two per cent of the world’s total greenhouse gas emissions. This means any improvement in data storage and energy efficiency could also have huge benefits for the environment as well as vastly increasing the amount of information that can be stored.

Dr Mills adds: “This advance eclipses the previous record which stood at -259°C, and took almost 20 years of research effort to reach. We are now focused on the preparation of new molecules inspired by the design in this paper. Our aim is to achieve even higher operating temperatures in the future, ideally functioning above liquid nitrogen temperatures.”

Reference: The paper Molecular magnetic hysteresis at 60 K in dysprosocenium will be published in Nature. Conrad A. P. Goodwin1, Fabrizio Ortu, Daniel Reta, Nicholas F. Chilton and David P. Mills ‘DOI:10.1038/nature23447. (Nature, 2017, 548, 439-442).

Article: Molecular magnetic hysteresis at 60 kelvin in dysprosocenium

Nature as published an article written by Conrad A. P. Goodwin, Fabrizio Ortu, Daniel Reta,  Nicholas F. Chilton, and David P. Mills, School of Chemistry, The University of Manchester, Oxford Road, Manchester M13 9PL, UK.

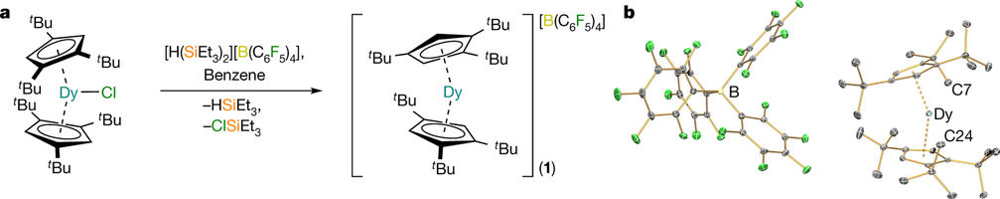

a, Synthesis of 1. b, Molecular structure of 1 with selective atom labelling (B, yellow; C, grey; Dy, cyan; F, green). Displacement ellipsoids set at the 30% probability level and hydrogen atoms are omitted for clarity. Selected distanc…

Abstract : “Lanthanides have been investigated extensively for potential applications in quantum information processing and high-density data storage at the molecular and atomic scale. Experimental achievements include reading and manipulating single nuclear spins^{1, 2}, exploiting atomic clock transitions for robust qubits³ and, most recently, magnetic data storage in single atoms^{4, 5}. Single-molecule magnets exhibit magnetic hysteresis of molecular origin⁶—a magnetic memory effect and a prerequisite of data storage—and so far lanthanide examples have exhibited this phenomenon at the highest temperatures. However, in the nearly 25 years since the discovery of single-molecule magnets⁷, hysteresis temperatures have increased from 4 kelvin to only about 14 kelvin^{8, 9, 10} using a consistent magnetic field sweep rate of about 20 oersted per second, although higher temperatures have been achieved by using very fast sweep rates^{11, 12} (for example, 30 kelvin with 200 oersted per second)¹². Here we report a hexa-tert-butyldysprosocenium complex—[Dy(Cp^ttt)₂][B(C₆F₅)₄], with Cp^ttt = {C₅H₂^tBu₃-1,2,4} and ^tBu = C(CH₃)₃—which exhibits magnetic hysteresis at temperatures of up to 60 kelvin at a sweep rate of 22 oersted per second. We observe a clear change in the relaxation dynamics at this temperature, which persists in magnetically diluted samples, suggesting that the origin of the hysteresis is the localized metal–ligand vibrational modes that are unique to dysprosocenium. Ab initio calculations of spin dynamics demonstrate that magnetic relaxation at high temperatures is due to local molecular vibrations. These results indicate that, with judicious molecular design, magnetic data storage in single molecules at temperatures above liquid nitrogen should be possible.“
