Inspur M5 Series Servers With Xeon Scalable Processors

Along with Intel Corp.‘s release of its latest generation of Xeon scalable processors family, Inspur Electronic Information Industry Co.,Ltd announced its generation of M5 series server platforms, providing the next generation of IT technology that propels businesses to reach their business goals faster.

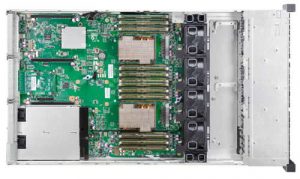

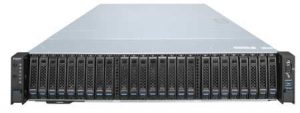

NF5280M5 front and rear

The company understands the IT needs of businesses and to build on our years of experience to deliver a portfolio of products, services and solutions to help businesses succeed and compete in the market place. The M5 series family focuses on meeting the needs of cloud computing, big data and deep learning applications, and all 35 products are designed for businesses to get ready to enter into the intelligent computing era.

The M5 series family, designed based on different deployment and application scenarios, includes four major product groups, 35 products, for cloud computing, big data, AI to provide customers with robust computing performance as well as reliable and efficient business protection.

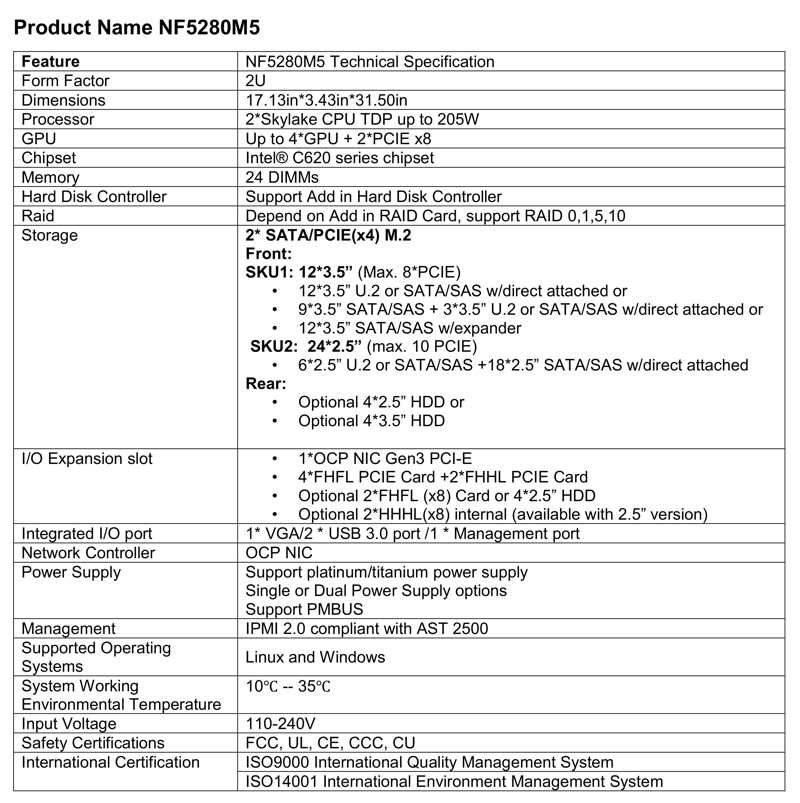

General purpose series servers and Enterprise series servers are designed to meet the requirements of demanding business applications. Besides, enhanced RASUM (Reliability, Availability, Serviceability, Usability and Manageability) features are integrated to provide ERP, CRM and other traditional enterprise applications with reliable and flexible supportive platforms. For example, the NF5280M5 is a 2U server that has the scalability of 56 physical cores, 24 memory slots and ten standard PCIe interfaces. It can be configured for more than 30 various application solutions, covering five key application scenarios including general purpose computing and heterogeneous computing.

NF5280M5

M5 Application Optimized Series Server meets the needs for computing-intensive applications and data-rich applications. In this group, some servers are designed for cloud data centers which require high-density, energy efficiency and ease of maintenance to lower TCO. Also, some are designed to manage big data, deep learning and other emerging data-rich applications. All these servers break through the bottlenecks of technical platform restrictions in storage, heterogeneous scalability and other aspects, and provide physical storage capacity and heterogeneous computing power better than general products. For example, the NF5288M5, a purpose-built deep learning server, supports the deployment of eight GPUs in a 2U form factor and offers performance for extreme AI computing and HPC mission.

Converged architecture product series is the next generation data center modular solution, and consists of multiple-star servers, blade servers, cabinet servers and other forms. The physical indicators, including product performance density, storage density and energy efficiency, as well as the scalability of computing, storage, I/O and other various resources are far superior to traditional servers.

Inspur is committed to providing end-to-end product design. For example, the storage server NF5486M5 is in a 4U form factor with a maximum configuration of 100 3.5-inch HDDs. It is a high density storage server with storage density of up to 25PB per U, saving 60% of the data center storage space compared with general purpose storage server. The company integrates a high-precision airflow deployment technology to ensure the system is working normally when all 100 3.5-inch HDDs are running at the same time.

Flexibility, intelligence and openness are key considerations in the product design. For example, firm’s IncloudRack and I9000 both support two, four and eight-socket nodes, as well as I/O, PC-E scalability module, and can be configured for a dozen business application platforms including enterprise private cloud, deep learning, public cloud and transaction processing. Ease of management and maintenance is another differentiator of company’s server products. The M5 series family is equipped with multi-dimensional automatic management solutions, and supports OpenBMC and Redfish, the two standard management API interfaces.

The M5 platform focuses on open, supports OpenBMC and Redfish, the two standard management API interfaces and the company also participates in all Open Data Center Projects, which include OCP, OCS, ODCC, Open19. The M5 series family offers a complete line of open platform product solutions, including five major solution platforms, Scorpio cabinet, 4U multi-star, OCP cabinet, OCS cabinet and Open19 cabinet, as well as 17 scalability nodes, covering three open standards.
