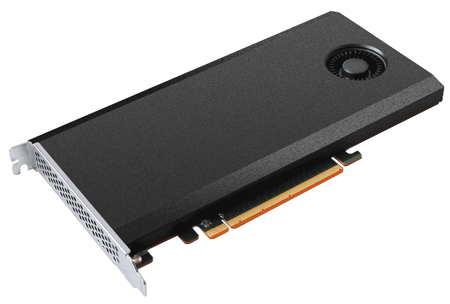

HighPoint Technologies: SSD7101 PCIe Board-Sized Drive Series

HighPoint Technologies, Inc. announced SSD7101 drive solutions, which unleash the performance potential of Samsung Electronics Co., Ltd. ‘ 960 NVMe M.2 SSDs.

The SSD7101 Drive Series delivers transfer speeds twenty times faster than SATA SSDs at a comparable price point, and reduces a system’s storage footprint from 20-bay rackmount chassis into a PCIe  device the size of an average graphics card.

For workstation acceleration
SSD7101 drives pack the power of a 20xSATA SSD RAID array into a compact, stand-alone PCIe device that can be installed into nearly any type of workstation. This approach to NVMe storage represents a paradigm shift in the development of workstation acceleration solutions. Compact workstations can now tackle complex projects and workflows that were once exclusive to specialized hardware platforms.

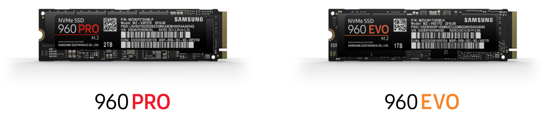

Company’s SSD7101 drives integrate Samsung’s 960 PCIe M.2 SSD series – the 960 PRO and 960 EVO – to deliver over 12GB/s of I/O performance. With 960 SSDs, the SSD7101 series provides up to 8TB of capacity via a single PCIe 3.0 slot, and over 20GB/s and up to 16TB in dual-drive configurations. Available in up to 2TB capacity, the 960 PRO is a fast and high capacity NVMe SSDs.

Professionals who want performance and longevity from their high-end workstation can opt for the 960 PRO. Additionally, Samsung offers the 960 EVO SSD, available up to 1TB capacity for mainstream users looking for faster and more reliable PC performance.

“The Samsung 960 series is designed to handle the demands of today’s complex data needs. Our latest NVMe series delivers more of what SSDs are known for – more speed, density, endurance and power efficiency. Thanks to our V-NAND technology, HighPoint’s latest drive solutions give professionals and consumers higher bandwidth and lower latency without sacrificing speed and performance,” said Richard Leonarz, senior director, memory marketing, Samsung Electronics America.

Click to enlarge

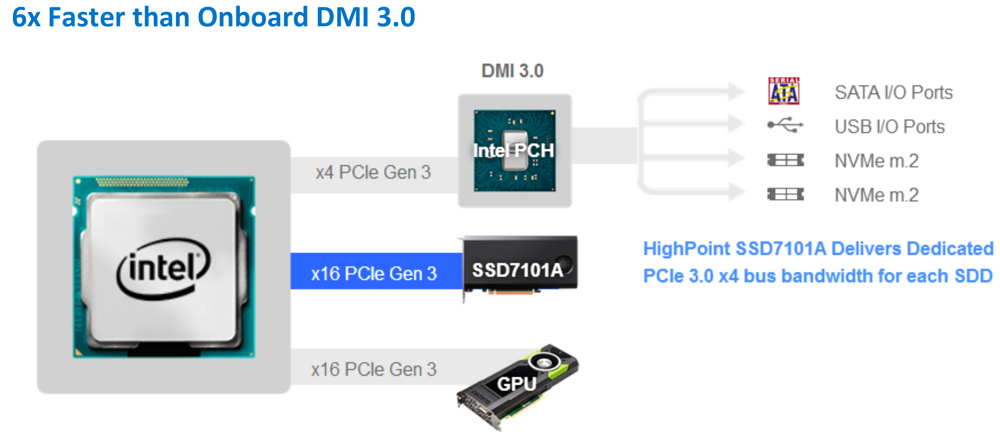

Unlocks performance of NVMe SSDs, hindered by Onboard DMI 3.0
The SSD7101 drive series unlocks the potential of NVMe SSDs. Unlike onboard DMI 3.0-based NVMe solutions, which are forced to share a single PCIe 3.0 x4 lane with the motherboard’s SATA and USB ports, SSD7101 drives feature dedicated PCIe 3.0 x16 bus bandwidth. This architecture allows the drive to interface directly with the platform’s CPU, which provides PCIe x4 bandwidth for each NVMe SSD.

Scale performance and capacity across multiple SSD 7101 drives
The firm’s NVMe Management Solution’s interface was designed to accommodate applications that require transfer speeds exceeding 12GB/s, or capacities larger than 8TB. This storage solution can easily scale performance to match the requirements of each application.

A single SSD7101 series drive can aggregate up to four M.2 SSD modules at PCIe x16 bandwidth and 8TB of storage capacity, and double that when used in dual configurations, all at a price per gigabyte comparable to that of traditional SATA SSD-based solutions.

Click to enlarge

Performance with small footprint

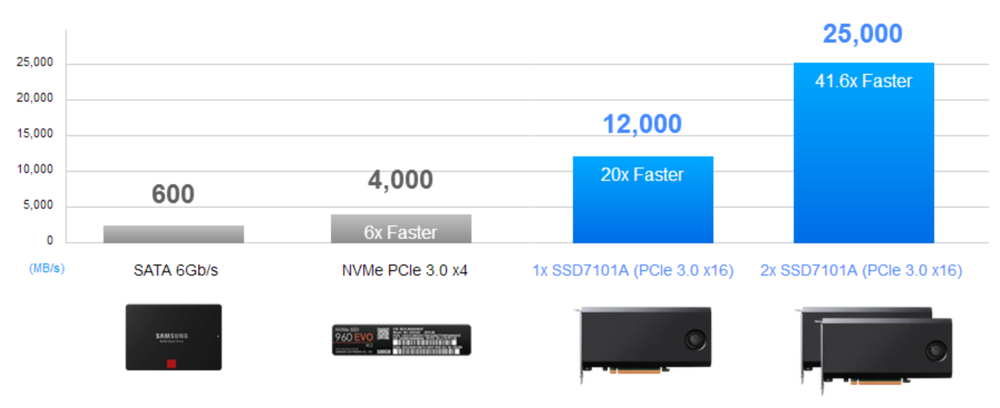

The SSD7101 series breaks free from the conventional storage solution concept, where the size of the storage footprint determines the solution’s I/O transfer performance capability. Achieving 12GB/s transfer rates no longer requires complex arrays of twenty or more SATA SSDs, dozens of HDDs, and dedicated 3U or 4U rack mount chassis. All you need is a single SSD7101 drive and a free PCIe 3.0 x16 slot. Two SSD7101 drives and two PCIe slots can deliver over 20GB/s. SSD7101 drive solutions deliver a combination of performance, capacity and cost in a compact, stand-alone PCIe device.

SSD7101 NVMe Product Series – Test units will be available at the end of May and mass production/shipping is planned for early July 2017.

• SSD7101A-040T – 4TB capacity (960EVO 1TBx4)

• SSD7101A-020T – 2TB capacity (960EVO 500GBx4)

• SSD7101A-010T – 1TB capacity (960EVO 500GBx2)

• SSD7101A-500G – 500GB capacity (960EVO 500GBx1)

• SSD7101B-080T – 8TB capacity (960PRO 2TBx4)

• SSD7101B-040T – 4TB capacity (960PRO 1TBx4)

• SSD7101B-020T – 2TB capacity (960PRO 512GBx4)

• SSD7101B-010T – 1TB capacity (960PRO 512GBx2)
