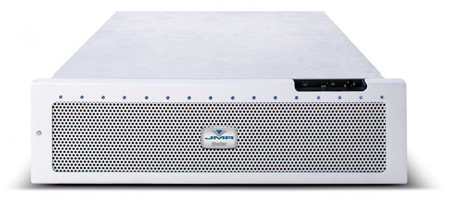

SHARE 3U 10GbE NAS dual RAID server with SAN option

Optimized for multi-user workflows and HD/4K video editing applications
3U, 16-bay SAS/SATA drive enclosure
16×3.5″ disk drives (2.5″ SSDs optional, by order)
Up to 96TB native capacity using SATA-III 3.5″ enterprise drives
Dual internal 6Gb SAS hardware RAID controllers
Dual internal 24-port SAS expanders
Dual Xeon 3.5 GHz CPUs, 32GB DDR4 memory standard (may be upgraded)
EuroNAS Premium Ultra 64-bit OS
File locking operations, user security assured and password protected
No limit on number of connected clients • RAID-0/1/4/5/6/10/40/50/60 available
Expandable to 672TB total capacity
Dual GbE network ports
Dual 10Gbe network ports standard (may be bonded)
Internal R/W transfers 1,800MB/s using 7200rpm SATA-III drives (up to 3,000 MB/s using SSDs)
Hot swappable drives, power supplies and cooling modules
Thermostatically controlled cooling system
SES 2.0 compliant
Easy-to-use GUI for all operations; Windows, Mac, Linux compatible
Brushed aluminum, removable (no tools required) front panel
Universal rack mounting kit and all hardware included

Note: Standard SHARE Server includes all features above, but replaces RAID Controller, CPU/memory and network adapter as follows:

Internal 6Gb SAS hardware RAID controller
3.5 GHz core i7 CPU, 24GB DDR4 memory standard • 10GbE network adapter optional

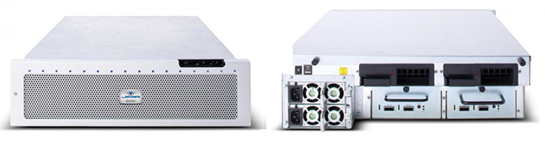

SHARE 3U SAS Expander front and rear

SHARE 3U SAS Expander:
The recommended storage add-on for any BlueStor server, including SHARE

3U, 16-bay SAS/SATA drive enclosure
16×3.5″ HDDs (2.5″ SSDs optional, by order)
Up to 96TB native capacity using SATA-III 3.5″ enterprise drives
6Gb SAS RAID controller providing RAID-0/1/4/5/6/10/40/50/60 included (for installation in host computer, PCIe 2.0/3.0)
Dual internal 24-port SAS expanders
May be concatenated (daisy-chained) via dual 4xSAS up to seven units, 112 drives
Dual hot-swappable power and cooling modules
Enclosure management via SES 2.0
Interconnecting 4x SAS cables included
Brushed aluminum, removable (no tools required) front panel
Universal rack mounting kit and all hardware included

Note: SHARE 3U JBOD Array|SAS expander includes all features above, except 6Gb SAS RAID controller. Ideal for connection to the SHARE server or any system that contains a RAID controller and provides SAS expansion ports.

PCIe Extender RAID

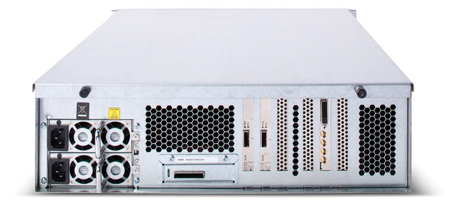

PCIe Extender RAID rear

The PCIe Extender storage system is a one product allowing PCIe bus expansion from a host server.

The extender provides five PCIe expansion slots in an external 3U rackmount also containing 16 hot-swap SAS/SATA disk drive bays and a SAS expander. Plugging a PCIe SAS RAID controller into one of the extender slots builds a RAID storage system. Other slots may be used as needed for other peripherals.

Each PCIe extender RAID has a PCIe 2.0 x8 port for the host connection, plus five internal PCIe 2.0 expansion slots, all x16 physically and x8 electrically, to support installation of five PCIe peripheral cards, up to full-height and full-length. The PCIe expansion slots are ‘double spaced’ to accommodate installation of ‘double wide’ cards, which include many current powerful GPUs.

The product is provided with a PCIe 2.0 host adapter card for installation in the host work station or server, and an external PCIe 2.0 cable (standard length 2m). The PCIe extender also features N+1 hot-swappable cooling elements with centrifugal blowers mounted in noise and vibration-dampening resin modules and N+1 hot-swappable power supplies which are all interchangeable with the BlueStor SAS Expander and PeSAN RAID rackmounts for simplified, low-cost spares programs.

All BlueStor rackmounts are SES 2.0 compliant and have been compatibility confirmed with every SAS and SATA-2/3 (3.5″ form factor) disk drive on the market.

3U 16-bay rackmount enclosure
Sixteen 3.5″ disk canisters: Utilizes hot-swappable, lightweight, low-cost, vibration-dampening resin disk drive canisters with integrated light pipes, latching handles and EMI shields
Hot swappable HDDs
Dual hot swappable power supplies
6Gb SAS (SATA compatible) interface to the drives
Up to 96TB capacity per unit with SATA-III or SAS drives
Also accommodates SFF SSDs for up to 3GB/s data transfer speeds
Five x16 (physically, x8 electrically) full length, double spaced Gen 2.0 slots to accommodate double-width PCIe peripherals such as GUIs and 4K capture cards
Dual active SAS expanders
Dual 6Gb SAS RAID controllers installed, standard • One PCIe 2.0 or 3.0 x16 host connection
SES 2.0 compliant
Power cabling is provided internally to support peripherals requiring additional power connections
Each unit has a physical user interface including real-time disk activity/failure status indicators, power and cooling status with audible and visible alarms, and front panel ‘on-o’

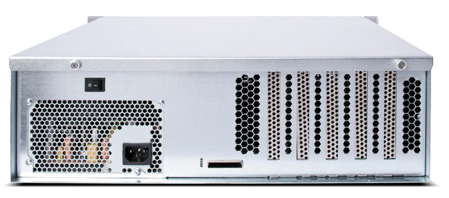

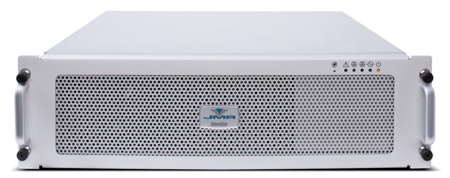

Five-Slot PCIe x8 Extender

The 5 Slot x8 PCIe Extender is ideal for adding multiple PCIe peripherals to existing system. It extends host server’s PCIe bus outside the server, providing additional slots for any application.

The five PCIe x16 slots (x8 electrically) are all full-length,full-height and double spaced to accommodate double-wide GPUs and other peripherals normally occupying the space of two slots, and may be used for any PCIe compatible cards including GPUs, capture cards, HBAs, RAID controllers, NICs and other devices.

The enterprise Five Slot x8 PCIe extender features four high-velocity hot-swappable cooling fans
The system incorporates a 1,200W universal input power supply
An external PCIe connector for cable connection to a PCIe X8 host controller and a five-slot PCIe backplane providing expansion ports for any compatible user-installed PCIe cards
The five PCIe slots are x8 electrical and x16 physical PCIe 2.0 slots
PCIe 2.0/3.0 compatible host adapter included
Support for PCIe devices requiring Auxillary PCIe power.
Also available in 4U high configuration for those using GPUs requiring topside power connections

16-drive bay SAS Expander/JBOD/RAID

The BlueStor model SASS-JD-G3-6-R is a lighter-weight, lower-cost version of BlueStor SAS expander/RAID model, now in its third generation.

This capacity storage unit has sixteen hot-swappable SAS/SATA drive bays with dual internal 6Gb SAS expanders to accommodate 3.5″ HDDs (adapters for 2.5″ SSDs optional) providing up to 160TB native disk storage capacity (up to 64 TB using SSDs). The unit offers fast performance: >1,700MB/s using sixteen SATA-3 7,200rpm disk drives; up to 3,000MB/s using SSDs (sequential file transfers).

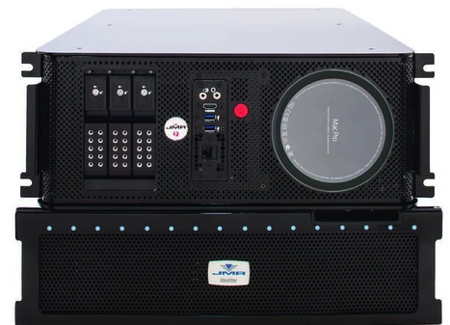

Consuming only 430VA maximum line power when fully operational, weighing 28lbs without drives installed (52lbs with all disk drives installed) and quiet as a mouse, this is a storage expansion unit for the lab, machine room or mobile production cart, and a compliment to the Lightning/Thunderbolt workstations (as shown above with LTNG-XQ-8) having internal RAID controllers, when more storage is needed.

Native storage capacity: Up to 160TB using current 10TB SATA-3 3.5″ disk drives
I/O connections: Dual 6Gb SAS (connects to HBA or RAID controller in work station or server)
Power required: 430VA, 120/240V 50/60 Hz, single power cord
Cooling: Three internal thermostatically controlled 120mm axial fans, mid-chassis
Status indicators: Power good; disk activity; disk failure; global failure; SES status
Dimensions: (5.25″/133mmHx19″/482mmWx21″/533mmD)
Weight: 28lbs (12.7kg) unpopulated; 52lbs (23.6kg) fully populated
Accessories: Power cord, rack mounting hardware

Available options:

External 6Gb SAS RAID controller (installs in host computer or Thunderbolt/PCIe expander)
External SAS cables (one, two, three meters available)
Installed, tested, initialized disk drives (inquire)
