Nature Scientific Reports has published an article written by Siwei Mao, Jun Lu, Xupeng Zhao, Xiaolei Wang, Dahai Wei, Jian Liu, Jianbai Xia, and Jianhua Zhao, State Key Laboratory of Superlattices and Microstructures, Institute of Semiconductors, Chinese Academy of Sciences, P.O. Box 912,Beijing 100083, China.

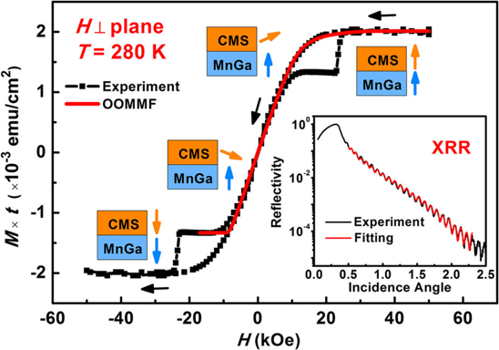

Figure 1: Out-of-plane hysteresis loop of Co₂MnSi/MnGa bilayer
measured at 280 K (black scattered line) and OOMMF simulated
loop with J_ex = −5 erg/cm² (red line).

Abstract: ” Because tetragonal structured MnGa alloy has intrinsic (not interface induced) giant perpendicular magnetic anisotropy (PMA), ultra-low damping constant and high spin polarization, it is predicted to be a kind of suitable magnetic electrode candidate in the perpendicular magnetic tunnel junction (p-MTJ) for high density spin transfer torque magnetic random access memory (STT-MRAM) applications. However, p-MTJs with both bottom and top MnGa electrodes have not been achieved yet, since high quality perpendicular magnetic MnGa films can hardly be obtained on the MgO barrier due to large lattice mismatch and surface energy difference between them. Here, a MnGa-based fully p-MTJ with the structure of MnGa/Co₂MnSi/MgO/Co₂MnSi/MnGa is investigated. As a result, the multilayer is with high crystalline quality, and both the top and bottom MnGa electrodes show well PMA. Meanwhile, a distinct tunneling magnetoresistance (TMR) ratio of 65% at 10 K is achieved. Ultrathin Co₂MnSi films are used to optimize the interface quality between MnGa and MgO barrier. A strong antiferromagnetic coupling in MnGa/Co₂MnSi bilayer is confirmed with the interfacial exchange coupling constant of −5erg/cm². This work proposes a novel p-MTJ structure for the future STT-MRAM progress.”
