Icy Dock: Mobile Rack for U.2 PCIe NVMe 2.5-Inch SSD in External 3.5-Inch Floppy Drive Bay

$85, SSDs from Intel, Micron and Seagate supported

This is a Press Release edited by StorageNewsletter.com on November 24, 2016 at 2:36 pm

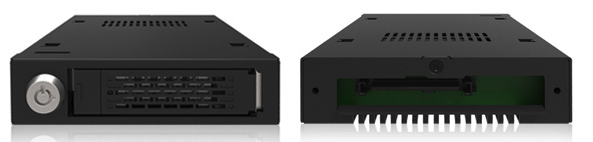

The MB601VK-B is ICY DOCK‘s next generation PCIe based mobile rack with ability to support Intel, Micron, and Seagate high speed 2.5″ U.2 NVMe solid-state-disk in an external 3.5″ floppy drive bay.

ICY DOCK,NVMe Mobile Rack

Performance
Build with the next generation U.2 interface, MB601VK-B offers up to 32Gb/s of bandwidth and supports 2.5″ U.2 NVMe SSD, SAS and SATA interface 2.5″ SSDs or HDDs. The performance of MB601VK-B provides the maximum amount of transfer speed for the data intense tasks such as real time large database transfers and refreshes, massive bulk data swaps from multiple networks, VMware and computers, and large scale editing of large multimedia assets of virtual reality, video, music, and other graphics with multiple workstations.

*Note: NVMe U.2 host is required to accept NVMe, SAS or SATA drives.

Convenient Utility and Accessibility
The EZ Slide Mini trays supports U.2 hot-swap feature, which makes U.2 NVMe SSD interchangeability and maintenance hassle-free. The tray is also designed to accommodate 7 to 15mm height HDD and SSD, creating a 2.5″ hot swap bay for U.2 NVMe SSD or any standard SAS/SATA HDDs and SSDs. The front of the MB601VK-B includes a status LED when the drive is powered on, off and accessed.

Metal Protection
The MB601VK-B is capable of holding up in the harsh environments, with the duty metal construction throughout the entire device.


Key Features

  • Fits 1×2.5″ U.2 NVMe SSD or 2.5″ SAS/SATA SSD/HDD (NVMe U.2 host is required to accept NVMe SSD, SAS or SATA SSD/HDD)
  • Fits any external 3.5″ drive bay or floppy bay
  • Supports NVMe 32Gb/s transfer rate
  • Accommodates 2.5″ SSD with 7mm, 9mm, 12.5mm and 15mm height
  • Active Power Technology (APT) – only powers up if there is drive installed in the drive bay
  • Anti-Vibration Technology (AVT) – creates a safe environment for HDDs or SSDs
  • EMI Grounding – protects HDDs from electrical damage
  • Eagle-hook lock system and 2-segment safeguard key lock keeps drives secure within the enclosure
  • Duty full metal construction for enterprise applications
  • Drive tray compatible with ToughArmor MB991SK-B, MB991IK-B, MB994SP-4S, MB994SP-4SB-1, MB994SK- 1B, MB994IPO-3SB and MB991U3-1SB

MSRP is $85.

To request free sample (registration required)
