SXL-8500 Series Video LTO Archive Systems From XenData

XenData Ltd. announces its SXL-8500 Series, a range of scalable LTO archive systems that combine performance, scalable capacity, affordability and ease of use.

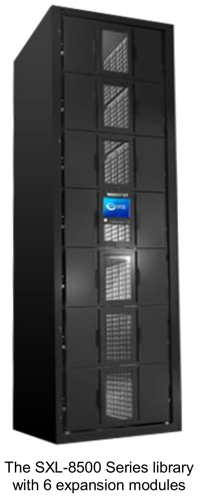

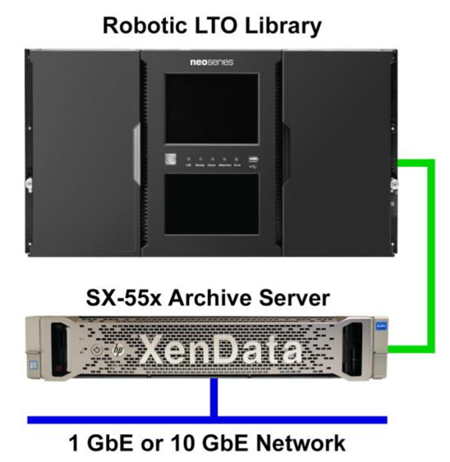

Providing 462TB of near-line LTO capacity, base models include a 6U robotic library with two LTO-7 drives and 77 LTO cartridge slots under management. By adding up to six 80 slot expansion modules, the system can accommodate 557 LTO-7 cartridges, scaling to a near-line LTO capacity of 3,342 TB, equivalent to over 70,000 hours of HD video recorded at 100Mb/s. The system can also be configured with up to 10 LTO-7 drives, and since each LTO-7 has a transfer rate for both archive and restore operations of 300MB/s, this enables increased performance as storage needs grow.

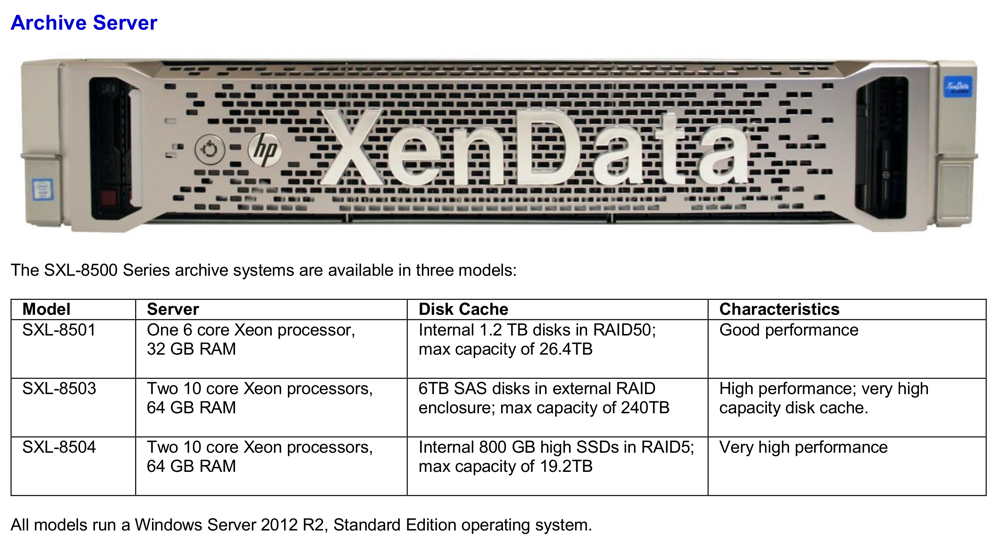

The SXL-8500 systems run a Windows Server 2012 R2 OS and are ready for upgrade to Windows Server 2016. They connect to a network via 1GbE or 10GbE ports that provide a NAS architecture configured with a network share. They have a standard file-folder interface to both archive and restore files, making it compatible with a range of creative video and video surveillance applications.

The system writes to LTO using the LTFS format. This allows easy cartridge interchange with other vendors. The company’s implementation of LTFS delivers functionalities that includes spanning of files and folders across LTO cartridges, partial file restores, automatic replication of LTO cartridges and management of an unlimited number of offline externalized cartridges.

The SXL-8500 Series is compatible with an array of media asset management systems, delivering a reliable, lower-cost and long-term tier of media storage complementary to video edit storage. The system also supports firm’s VS functionality, which is optimized for video surveillance applications. This includes the ability to retain files on LTO for a defined retention period, after which the content is deleted and the LTO cartridges are automatically reformatted and ready for re-use.

“The SXL-8500 raises the bar when it comes to scalability, performance and value for money,” said Phil Storey, CEO, XenData. “Now more than ever, organizations are looking for a solution to capture and retain massive amounts of creative video content or surveillance video from large-scale projects, and our new series is an ideal fit.“

The SXL-8500 comes with on-site support in the USA and other locations worldwide.

Prices start at $51,800 for the base 462TB system.
