EliteliteRAID UTI6G Series Versatile DAS/SAN for Video Surveillance From Sans Digital

The Sans Digital Inc.‘s EliteRAID UTI6G series is a versatile DAS/SAN.

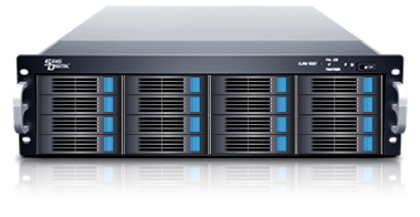

ER316UTI6G

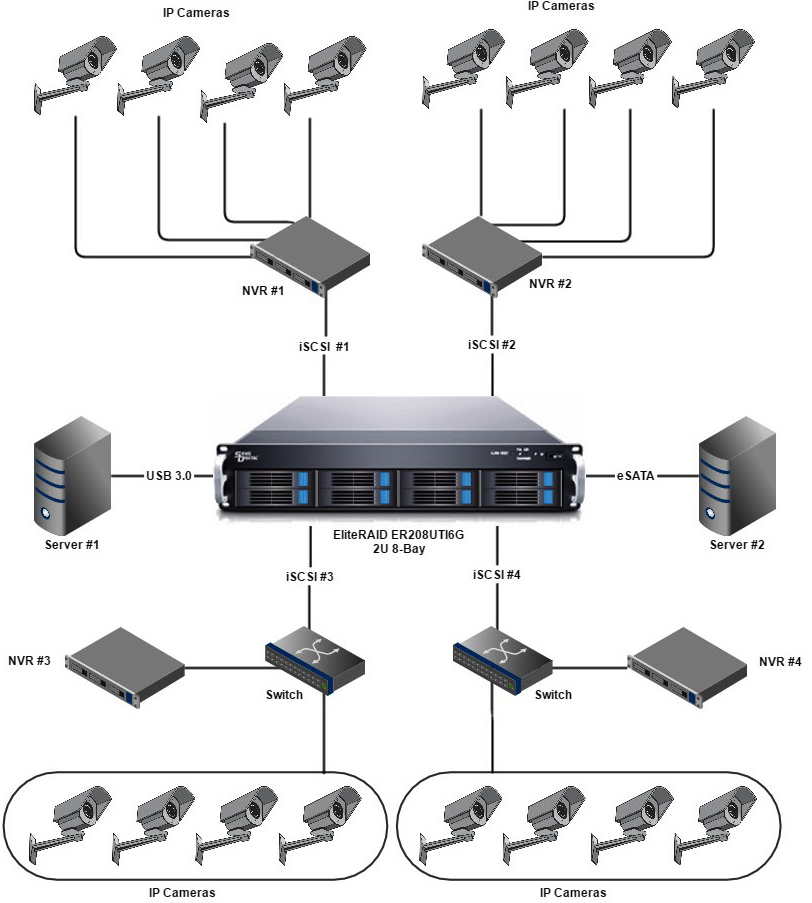

Designed for video surveillance systems, the ER208UTI6G can support high-definition IP camera recordings for small to midsize deployments. Other applications include complete virtualization software support including VMware, Citrix, and Hyper-V as well as other DAS and SAN usages.

Click to enlarge

Overview
The EliteRAID UTI6G Series is available in 2U 8-bay, 2U 12-bay, 3U 16-bay and 4U 24-bay rackmounts with USB 3.0/eSATA/4xiSCSI interfaces, with and embedded hardware RAID engine. The hardware RAID feature offloads RAID calculations from the client’s OS to the RAID engine, which increases the overall R/W performance and eliminates potential OS compatibility issues. The built-in Web GUI management interface and event notification with SMTP E-mail and SNMP trap allows administrators to monitor unit status remotely via web browser without the need for additional software. In addition to RAID-5, mirroring (RAID-1) and striping (RAID-0), the EliteRAID UTI6G series supports RAID-6 to protect stored data from up to two HDD failures. JBOD is supported to allows drives to be accessed individually. Utilizing SATA drives, it achieves high performance DAS gains with fail-safe file protection at a cost effective price range.

Available form factors

• ER208UTI6G= 2U 8-bay

• ER212UTI6G= 2U 12-bay

• ER316UTI6G= 3U 16-bay

• ER424UTI6G= 4U 24-bay

System specifications

• Host interface: 1×6.0G eSATA; 1×5.0Gb/s USB 3.0; 4×1.0Gb/s GbE iSCSI

• Jumbo frame support

• Header/data digest support

• CHAP authentication

• MPIO, MC/S, trunking and LACP(802.3ad) support

System status and indicators

• Silent and adequate air flow with intelligent cooling fan speed control

• SMTP support for email notification

• SNMP support for remote manager

RAID features

• RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, single disk or JBOD

• Multiple RAID-0 and RAID-10(1E) support (RAID-00 and RAID100)

• Multiple RAID selection

• Configurable stripe size up to 1024KB

• eSATA host: eight volumes (with port multiplier)

• iSCSI host: 128 volumes

• USB 3.0 host: eight volumes

• Online array roaming

• Online RAID level/stripe size migration

• Online capacity expansion and RAID level migration simultaneously

• Online volume set growth

• Instant availability and background initialization

• Supports global and dedicated hot spare

• Automatic drive insertion/removal detection and rebuilding

• Support for native 4K and 512 byte sector SATA devices

• Multiple pairs SSD/HDD disk clone function

• SSD automatic monitor clone (AMC) support

• Supports HDD firmware update

• Supports intelligent power management to save energy and extend service life

RAID management

• Field-upgradeable firmware in flash ROM via RS-232 and LAN port

• Push Buttons and LCD for setup and status

• Firmware-embedded manager via RS-232 port

• Firmware-embedded browser-based RAID manager, SMTP manager, SNMP agent and Telnet function via LAN port.
