Icy Dock: Flex-Fit Quattro MB344SP

For four 2.5-inch HDD/SSDs into external 5.25-inch bay

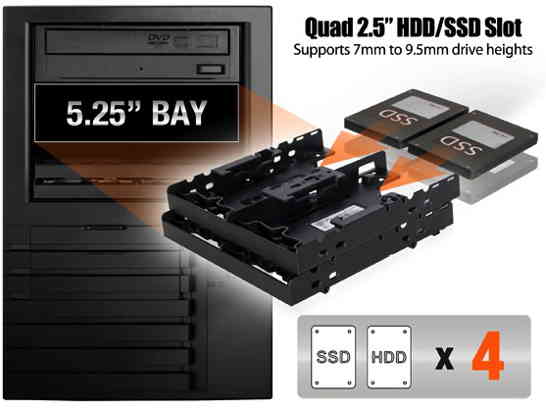

Icy Dock introduces Flex-Fit Quattro MB344SP 4×2.5″ HDD/SSD bracket for external 5.25″ bay.

ICY-BOX_Quattro MB344SP_1
With the 2.5″ SSD prices dropping and their capacity increasing, there are more and more computer users starting to upgrade their HDD drive to SSD. If you are computer literate, you may have more than one 2.5″ SSD installed in your system. Since every computer has limited HDD slots, what will happen if you are running out of storage space but at the same time your system is out of physical drive slots for adding more drives? The Flex-Fit Quattro MB344SP  HDD/SSD bracket is an answer.

The Flex-Fit Quattro takes up to 4 x 2.5″ HDD/SSD and uses one external 5.25″ bay. The space saving design allows to optimize storage density and free up valuable HDD slots. With a tool-less drive installation design, it lets you to easily insert or remove the HDD/SSD without dismounting the entire bracket from the system. This is useful when adding additional HDDs/SSDs to your system, simply open the side panel of the PC case; insert the HDD/SSD into the bracket and then plug in the cables.

Effortless installation
The Flex-Fit Quattro MB344SP is an advanced quad 2.5″ HDD/SSD bracket designed to be both user-friendly and flexible. It accepts up to 4×2.5″ SATA HDD/SSD drive from 7mm to 9.5mm eight, which uses a new tool-less drive installation design with a drive stabilizer system to simplify the drive installation process – all you need to do is insert the drive, and push inwards until an audible ‘click’ is heard to indicate that the drive is securely installed. The drive stabilizer kits will automatically conform to different drive height and adjust the drives in place while providing full access to the drive. Lastly, the easy to access drive eject button allows for quick HDD swapping in a matter of seconds without removing the entire bracket from the chassis. This bracket is tool-less drive installation – just insert the drive and you’re set.

Better organization, better productivity
With MB344SP’s high drive density design, you can put up to 4×2.5″ HDD/SSD altogether in a single 5.25″ bay for better cable management and system cooling performance. To install the Flex-Fit Quattro, remove the 5.25″ drive bay cover, insert the Flex-Fit Quattro into the 5.25″ bay and secure it with four screws. Finally, install the 5.25″ bay cover back to the computer case and it is ready to use. It can be used as an external drive organizing rack, with the option to stack multiple brackets on top of each other to create a cost-effective storage tower. This is handy for people who have large collections of 2.5″ drives such as media professionals.

Protect your investment
The Flex-Fit Quattro MB344SP is constructed with robust ABS plastic and fuses desirable traits such as durability and light weight. Using a sturdy plastic open frame design provides durability and passive cooling factor which as a result, reduces the chances of mechanical failures while using the bracket. The open air frame design allows the drives to be cooled by the internal fans in your chassis. Along with our skeletal design, the Flex-Fit Quattro allows airflow in all the crucial areas of the drive which helps the drive’s performance.

Key features:

  • Fits 4 x 2.5″ SATA HDD/SSD into a single 5.25″ drive bay

  • Compatible with 2.5″ HDD/SSD with 7mm to 9.5mm height

  • Tool-less drive installation design with advanced drive stabilizer system

  • Compatible with any standard external 5.25″ bay

  • Open frame design for maximum passive cooling

  • Optional – can be used as an external stackable drive organizing rack
