Areca ARC-1203 6Gb SATA RAID Controllers by Starline

€301 for ARC-1203-4i, €340 for ARC-1203-8i

Starline Computer GmbH introduces low-cost 6Gbps SATA RAID controller from Areca Technology Corporation.

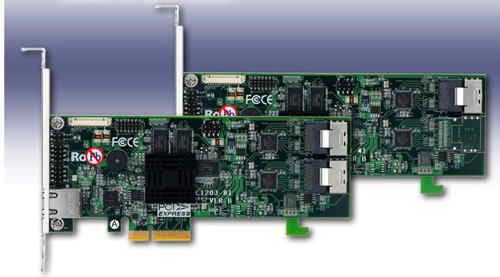

ARECA_ARC-1203 RAID
The ARC-1203 RAID controllers offer the cost-efficient opportunity to connect and operate up to 6Gb SATA HDDs or SSDs in a storage enclosure.

The RAID controller of the 1203 series feature a PCIe 2.0 x4 interface and an ARM-based I/O processor. The 512 MB ECC SDRAM memory is integrated.

These RAID controllers are low-profile models and they fit into servers with 1 or 2U.

Several ARC-1203-4i and ARC-1203-8i RAID controllers can be used simultaneously. Thereby, the number of accessed drives be increased.

The controller firmware includes a browser-based Storage Manager. Access can be received through the Ethernet port or ArcHttp proxy server in Windows, Linux, FreeBSD and other environments.

The RAID controllers are for cost-effective and powerful NAS, DVR (Digital Video Recording) and suitable for other applications that require reliability and performance.

Features:

  • 4x6Gb/s transfer rate per port:

      • ARC-1203-4i: 1xSFF-8087

      • ARC-1203-8i: 2xSFF-8087

  • Support for up to 8 SATA HDDs or SSDs

  • 512MB SDRAM with ECC

  • PCIe 2.0×4 host interface

  • ARM processor

  • RAID level 0, 1, 1E, 3, 5, 6, 10 or JBOD (ARC-1203-4i) and additionally 30, 50, 60 (ARC-1203-8i)

  • Online capacity expansion, RAID level/stripe size migration

  • Online volume set growth

  • Redundant flash image for adapter availability

  • Support greater than 2TB per volume set

  • Optional battery backup module (BBM)

  • Serial bus and SGPIO enclosure management

  • Support for native 4K and 512 byte sector SATA devices

  • OS support for VMware, Windows, Linux, Solaris, Mac OS X and FreeBSD

Tech tip:
All RAID sets of any Areca controller are compatible with each other. When replacing the Areca controller, the existing data are directly available.

The ARC-1203-4i/-1203-8i RAID controller are available from the company.

Recommended sales price ARC-1203-4i €301 incl. VAT , ARC-1203-8i €340 incl. VAT, state 10.06.2016.
