Starline Introduces ARC-1216/-1226 Areca 12Gb SAS/SATA RAID Controllers

Starline Computer GmbH introduces 12Gb/ps Areca Technology Corporation ‘ SAS/SATA RAID controllers.

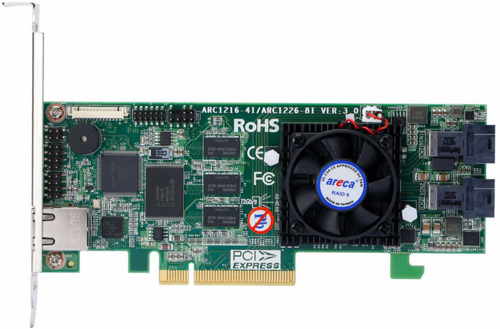

The ARC-1216/-1226 RAID controllers provide up to two internal or external 12Gb miniSAS HD ports for up to eight SAS/SATA HDDs or SSDs.

Everyone looking for a affordable, high-performance RAID controllers the ARC-1216 and ARC-1226 RAID controllers are the right choice. The special storage CPU is equipped with a new high-performance dual core processor with 1.2GHz. The 1GB on-board RAM memory is integrated. These RAID controllers are low-profile models and they fit into servers with 1 or 2U. Several ARC-1216 and ARC-1226 RAID controllers can be used simultaneously.

Features:

4x12Gb/s transfer rate per port:

ARC-1216-4i: one internal miniSAS HD (SFF-8643)
ARC-1226-8i: two internal miniSAS HD (SFF-8643)
ARC-1216-4x: one external miniSAS HD (SFF-8644)
ARC-1226-8x: two external miniSAS HD (SFF-8644)

Support for up to eight SAS/SATA HDDs or SSDs
1GB DDR3-1600 SDRAM with ECC
1.2 GHz dual core RAID-on-Chip processor
PCIe 3.0
RAID levels 0, 1, 1E, 3, 5, 6, 10 oder JBOD (ARC-1216/-1226) and additionally 30, 50, 60 (ARC-1226)
Redundant flash image for highest adapter availability
Multiple ARC-1216 and -1226 RAID controller can be used simultaneously
Supports current 10TB HDDs
Backwards compatible with 6Gb and 3Gb SAS/SATA HDDs
OS support for VMware, Windows, Linux, Solaris, Mac OS X and FreeBSD

Tech tip:
All RAID sets of any Areca controller are compatible with each other. When replacing the Areca controller, the existing data are directly available.

Application examples:
The ARC 1226-8x RAID controller is perfect in combination with the ARC-4038ML. The external Areca enclosure provides up to 8x12Gb SAS, 6Gb SATA HDDs or SSDs. In conjunction with the Areca RAID controllers, it provides high data transfer rates and reliability.

The ARC-1226-8x RAID controller supports the current 10TB HDDs. The rackmount enclosure NA341B from Netstor Technology Co. Ltd. offers eight HDD bays, so you can reach a total capacity up to 80TB.

In combination with the ARC 1216-4x RAID controller Netstor`s NS370B provides optimal performance. It is a rackmount enclosure with four ‘hot-swap’ drive bays.

The ARC-1216/-1226 RAID controller are available.
