Addonics Adapter for 2.5-Inch NVMe U.2 SSDs

$36

Addonics Technologies, Inc. announced a family of adapters for NVMe 2.5″ U.2 SSDs, which ensure full R/W speed by directly connecting the SSD to a 4-lane PCIe 3.0 slot.

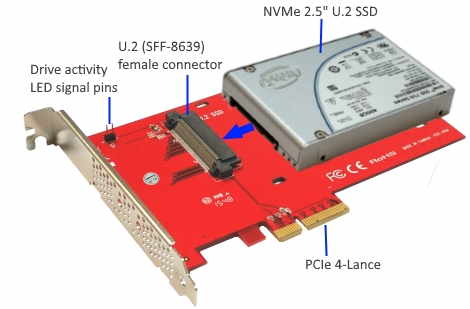

NVMe 2.5″ U.2 SSD PCIe adapter

ADDONICS_ad25nvmpx4-diagram
The family includes NVMe 2.5″ U.2 SSD PCIe adapter; SFF-8643 PCIe 4X adapter, and M2 SFF-8643 converter.

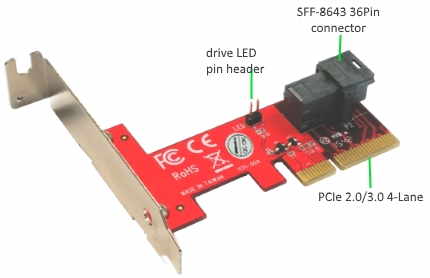

SFF-8643 PCIe 4X adapter
ADDONICS_SFF-8643 PCIe 4X adapter_0

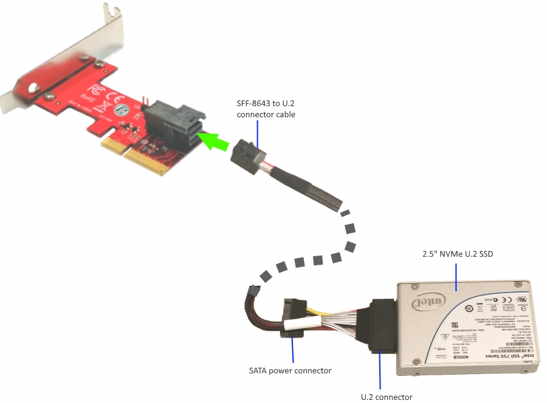

Illustration of connecting  2.5″ NVMe U.2 SSD via SFF 8643 cable
ADDONICS_SFF-8643 PCIe 4X adapter_1
Note: The 2.5″ NVMe U.2 SSD and the SFF-8643 cable shown above
are for illustration purpose and are not part of this converter.

The NVMe 2.5″ U.2 SSD PCIe adapter is a PCIe 4X add-on-card with a 68-pin SFF-8639 female connector on board to directly connect a NVMe 2.5″ U.2 SSD to a PCIe 4-lane slot. No cables are needed. It is a simple solution for installing the U.2 SSD into desktop or server equipment.

The SFF-8643 PCIe 4X adapter is designed for connecting the high performance 2.5″ NVMe U.2 (SFF-8639) SSD to a PCIe 4-lane slot in a system via a SFF-8643 cable, which allows installation of U.2 SSDs into various types of drive bays. The adapter is a flexible solution for installing NVMe U.2 SSDs into standard height or low profile systems.

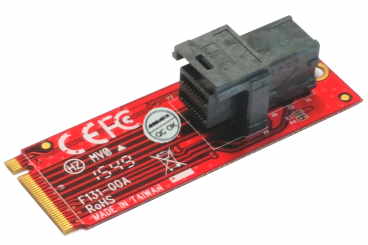

M2 SFF-8643 converter
ADDONICS_CONVERTER_ADM2SF8643

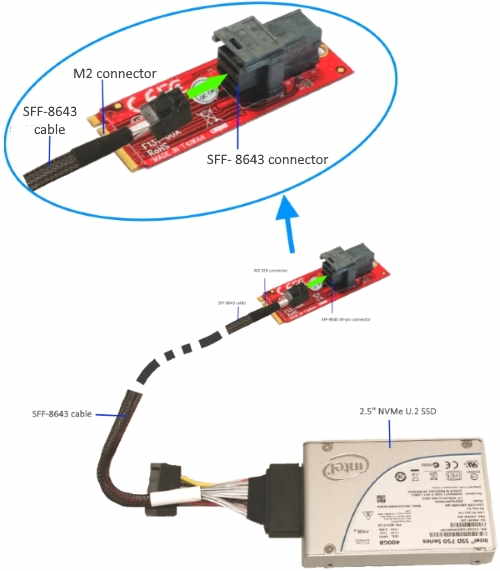

Illustration of connecting  2.5″ NVMe U.2 SSD
to this adapter via  SFF-8643 cable.
ADDONNICS_M2 SFF-8643 converter_1
Note: The 2.5″ NVMe U.2 SSD and the SFF-8643 cable shown
above are for illustration purpose and are not part of this converter.

The M2 SFF-8643 converter is a small adapter that is designed to install into a M2 PCIe SSD socket and turn it into a SFF-8643 connector. This converter enables the NVMe 2.5″ U.2 SSD to be attached to the system PCI BUS via a M2 PCIe SSD socket using the SFF-8639 to SFF-8643 cable.

Company’s NVMe (Non-Volatile Memory Express) adapters and converters all use PCIe lanes to transmit data, providing speeds well in excess of SATA. Most SSDs have peak bandwidth well above what SATA can handle. This gives flash devices a huge performance boost so they can deliver their potential and no longer be slowed down by a storage stack, which was primarily designed for slow spinning disks.

There are no software drivers to install with firm’s adapters. List price of NVMe 2.5″ U.2 PCIe adapter is $35.99.
