MemxPro Presents 6Gb SATA MLC M.2 Module Series

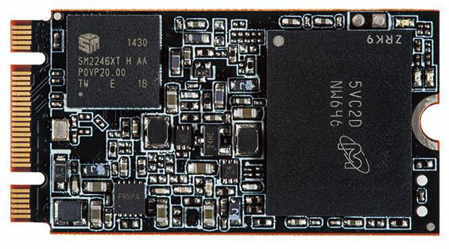

MemxPro, Inc. announces its 6Gb SATA MLC M.2 SATA embedded flash module series, a case-less, small form-factor memory module with rugged features for immediate industrial customer qualification.

The M.2 specification allows different thickness M.2 SSDs with single-sided versions (S2) and dual-sided versions (D2) offered. The single-sided version highlights its ultra-thin profile with a maximum component height of 1.35mm, making it the choice for embedded and small handheld devices where space is limited.

The flexible M.2 specification allows different module widths and lengths, and with its advanced interfacing features, makes the M.2 form factor more suitable for NAND SSD applications in general. Company’s M.2 SATA M3B series performs consistently in harsh environments with wide temperature variations, shock, vibration and dust. Its high capacity SSD flash memory complies with the SATA 3.1. specification and is available in length dimensions of 42mm, 60mm, 80mm, and 110mm. Wide temperature grade options include: standard grade 0 ~ 70°C, extended grade -25 ~ +85°C, and industrial grade -40 ~ +85°C.

At the same time, firm’s M.2 SATA M3B series is able to deliver R/W speeds for heavy-loading and multi-tasking applications. Its sequential read data transfer performance is up to 500MB/s and sequential write speed is up to 150MB/s.

The single-sided modules come in 16, 32, 64, and 128GB capacities, and the double-sided modules come in 32, 64, 128, and 256GB capacities.

Data is protected by a built-in 66 bits per 1KB ECC and its controller manages interface protocols, storage and retrieval, defect handling and diagnostics, power saving modes, wear leveling, and flash block management.
