Areca: ARC-1203 Entry-level PCIe 2.0 6Gb SATA RAID Adapter

4/8/12/16 ports for internal storage

Areca Technology Corporation announced the availability of a 4/8/12/16 ports 6Gb SATA PCIe 2.0 x4 RAID controller designed to meet the internal storage solutions equipped, Windows, Linux, FreeBSD, Solaris and Mac computers.

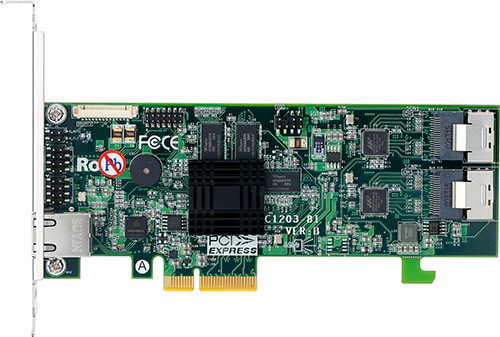

Areca ARC-1203-8I

ARECA_ARC-1203-8I

The ARC-1203 series entry-level RAID controllers cover the spectrum of wild range storage requirements for cost-sensitive applications that require data protection. The 4/8/12/16 port configurations are aimed at HA and capacity oriented applications, such as security systems, surveillance, multimedia content generation, large-volume data capturing and mail servers.

They incorporate onboard performance 1,066MHz storage processors and on-board DDR3-1066 SDRAM memory to deliver true hardware RAID. Hardware RAID cards have their own local RAID processor onboard, plus dedicated onboard cache for full hardware offloading of RAID-processing functions. The ability of hardware RAID controllers to hot swap and rebuild an array in the event of a drive failure is superior to what software RAID controllers offer. ARC-1203 series 6Gb SATA RAID controllers can also provide RAID levels 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, single disk or JBOD for configuration flexibility.

The BIOS contains an embedded McBIOS RAID manager that can access via hot key at BIOS boot-up screen. This pre-boot RAID manager can use to simplify the setup and management of RAID controller. The controller firmware also contains and browser-based McRAID storage manager that can access through the Http Proxy server. The McRAID manager allows local and remote to create and modify RAID set, volume set, and monitor RAID status from standard web browser. API software components and CLI also support for the RAID manager.

Click to enlarge

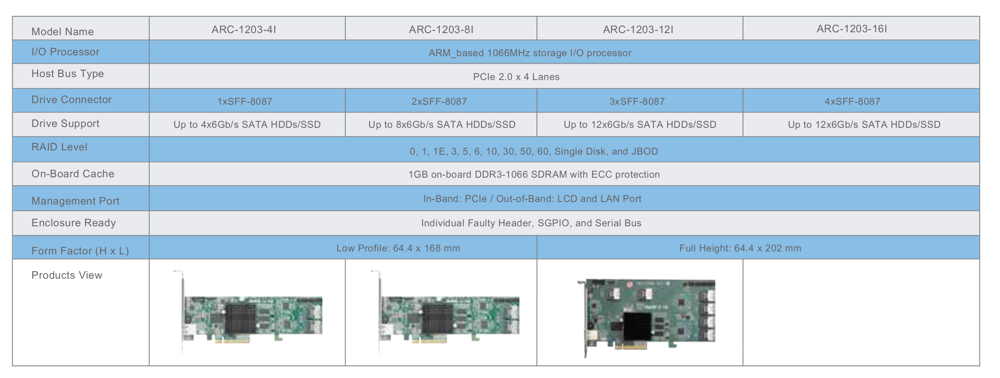

ARECA_ARC1203_4i-8i-12i-16i_TAB



The ARC-1203-4I/8I, 4/8 ports 6Gb SATA, PCIe 2.0 x4 RAID controller is shipping and available through worldwide distributors and resellers.
