Cable-Less SATA Power Technology for Disk-On-Module SSDs From Innodisk
Pin 8 Vcc powers SATADOM directly through SATA connect.
This is a Press Release edited by StorageNewsletter.com on October 2, 2015 at 3:19 pmInnodisk Corp. announces its series of SATADOM disk-on-module SSDs featuring a cable-less power technology.
This series of SATADOM and ServerDOM come in the same compact form factor but feature a way of delivering power to the flash drive directly through the SATA connector itself for less clutter and superior reliability. The patented Pin 8 technology powers a series of SATADOM drives which will come in a variety of compact form factors and flash flavors including SLC, MLC and iSLC, as well as DRAM-less versions for 100% data integrity in the face of power loss. Besides SATADOM with Pin 8 technology, the company is updating its full line of SATADOM SSDs including SATADOM powered by Pin 7 power and external power cables. This SATADOM SSDs will feature higher capacities and DRAM-Less SSD technology.

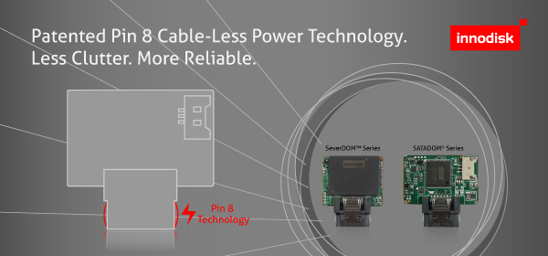

SATA pin 8Vcc power technology
Patented by the company, SATA Pin 8 Vcc uses the SATA connector itself as a power supply to drive the device without external cables. Extra pins on each side of the drive’s connector mate with pins in the motherboard’s SATA interface to provide a power source that eliminates the need for cables. Already available on motherboards from top manufacturers, company’s Pin 8 Vcc technology joins SATA Pin 7 Vcc technology to enable compact, cableless SATA storage solutions.
Reliable cable-less storage
SATA Pin 8 Vcc Technology makes SATADOM a plug and play storage with no extra connectors needed. It not only provides power but the SATA connector’s power pins create a robust physical connection between the SSD and motherboard, increasing system reliability. The cableless design means less clutter and improves air flow, especially in rackmount server chassis and low profile system.

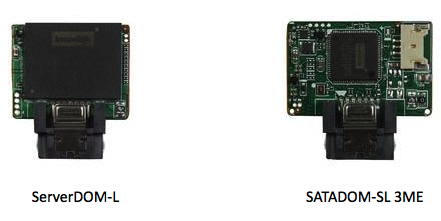

Perfect server OS storage
With its small form factor, industrial grade technologies and reliable power sourcing, SATADOM provides the perfect compact flash storage for servers, and also comes in an even more compact ServerDOM version especially designed for server applications. For high storage reliability, ServerDOM is compatible with Intel RSTe technology and can be configured as a pair of SSD Boot drives for OS redundancy. With its cable-less design, SATADOM is easily hot swappable with no extra connections to deal with. Using ultra-compact Innodisk nanoSSD flash, ServerDOMhas a slim form factor that fits into some of the most low-profile rackmount and blade chass,for compact, reliable storage that eliminates messy cabling.
