MEN Micro Announced MH70S 20TB Storage System

MEN Micro Inc. has expanded its modular, built-to-order systems with the MH70S designed for storage applications.

The CompactPCI Serial platform, which offers a capacity of up to 20TB, is a pre-configured system for storage intensive applications such as digital video recorders, content servers or NAS. Its robust, compact design makes the storage PC ideal for use in trains, buses and industrial environments.

Robust, safe and flexible with  i7 processor and RAID

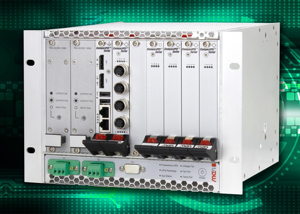

The MH70S is a half 19-inch modular system with up to five HDD/SSD slot cards, totaling 20TB. For robust and safe operation, the HDD carriers can be configured in RAID-0,1 or 5, while the carriers themselves have their own internal RAID-0, 1 and JBOD hardware configuration abilities.

The system is based on a i7 processor supporting Intel AMT functionality and featuring two GbE interfaces. An optional TPM provides additional data safety, so it can be used for services such as pay-per-view. Built-in Intel vPro functionality enables remote administration.

An optional shelf controller complements the MH70S’ self-control and self-monitoring capabilities provided by the CPU’s board management controller. It manages lifetime information about critical components, such as the shelf fans and power supplies, and can be used for manual shutdown.

For external communication, the system provides flexible configurations. Two of the seven slots in the system can be equipped with Ethernet interfaces and/or Ethernet switches – the latter with Power over Ethernet (PoE) functionality. For wireless communication via WLAN, UMTS, LTE, GPS or GLONASS, these slots alternatively can be used with PCIe Mini Cards.

The MH70S offers two PSU slots for AC or DC to ensure system reliability and redundancy.

The storage box PC offers a wealth of individual configuration options for storage and processing power. Its flexibility and software support for all usable storages and interface components save costs, while ensuring ast time-to-market.

Designed for years of use in harsh and extreme environmental conditions, the MH70S is a reliable and robust built-to-order system with a small footprint. The system can be rack or wall-mounted and uses either natural, fanless convection or an additional fan tray at the bottom of the system for cooling.

Technical specifications:

• Compact half 19″ turn-key system

• i7 or Celeron, TPM optional

• Up to 16GB DDR3 DRAM soldered, ECC

• Up to 20TB storage capacity (depending on RAID level and HDD sizes)

• Up to five hot-swappable HDD/SSD carriers in different RAID configurations

• Single or redundant power supplies or uninterruptible power supply (AC or DC)

Pricing for the MH70S is $6,495. Delivery is six to eight weeks ARO.
