R&D : Hitachi R/W of Digital Data in Fused Silica Glass

Recording density equivalent to Blu-ray disc and withstand storage of "300 million years"

Hitachi, Ltd. announced that, in collaboration with Professor Miura Kiyotaka of the School of Engineering, Kyoto University, it has achieved R/W of digital data in 100 layers of fused silica glass, a recording density comparable to Blu-ray disc.

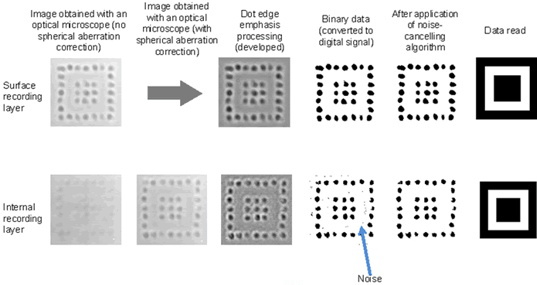

Data reading process

201410_HITACHI_SILICA_STORAGE_141020a

One hundred multi-layer data recording was verified by the application of newly developed noise reduction technology to overcome interference from data recorded on other layers while trying to access data written in deeper layers within the fused silica glass.

Fused silica glass is known to offer excellent heat and water resistance. It has already been demonstrated that data can be read without degradation even after subjecting the fused silica to an accelerated temperature test of 1,000°C for 2 hours. This indicates that data archived using fused silica glass can withstand storage of over 300 million years. The use of fused silica is expected to provide new technology for semi-perpetual storage of valuable data such as historically important legacies and public documents as well personal data that individuals may wish to preserve data for future generations.

With the rapid transition of records from paper to digital media, there is a need to establish long-term storage technology. In particular, with respect to cultural heritages or public documents, semi-perpetual storage technology permitting access to recorded data throughout generations without any degradation resulting from heat or humidity, is necessary. To meet this need, research is being pursued worldwide on various long-term digital storage technologies including the use of semiconductors and biological DNA.

In 2009, Hitachi focused on fused silica known for its excellent heat and water resistance as a recording medium for long-term digital storage. After proposing the use of computed tomography (1) to read data recorded with a femtosecond pulse laser (2), fused silica glass was confirmed as an effective storage medium. Applying this technology, it is possible to achieve multi-layer recording by changing the laser’s focal point to form microscopic regions (dots) with differing refractive indices. In 2012, a method was developed with Kyoto University to read the recorded dots in 4 layers using an optical microscope (recording density equivalent to a CD), and in 2013, 26 layer recording was achieved (recording density equivalent to a DVD). In order to increase recording density for practical applications, one means is to increase the number of recording layers. At the 100-layer level of recording density equivalent to a Blu-ray disc however issues arose in dot quality degradation and read errors resulting from crosstalk of data recorded in other layers.

To address these issues, Hitachi and Kyoto University identified the factors to realize R/W in 100 recording layers within fused silica glass, and succeeded in demonstrating R/W in 100-layer.

R/W in 100 layers was verified using the following technologies:

  • High-quality data recording and reading via application of a spherical aberration correction lens when light is focused on a recording layer deep within fused silica glass, a phenomenon known as spherical aberrations which degrades the quality of the spot occurs. To then form a dot at the degraded spot, laser intensity needs to be increased but in fused silica glass, the focal points of powerful lasers are distorted depth-wise causing dots to be formed in other layers close to the target layer, resulting in noise in reading the data. Employing a spherical aberration correction lens, spot quality degradation was controlled without the need to increase laser intensity, and the formation of dots in the deeper recording layers was verified. Further, by also employing an aberration correction lens to the optical microscope used to read the data, it was confirmed that high-quality images could be attained.

  • Reduced read error by applying a noise-cancelling read algorithm Images captured by the optical microscope are converted to digital signals in reading data: spots where dots are formed are converted to ‘1’, and those without dots are converted to ‘ 0.’ As the layers become deeper within the fused silica glass, it was found that in capturing the images, noise due to crosstalk from other dots in other recording layers increased. To overcome this noise, an image-processing algorithm was applied which detects dot area (size) to distinguish dots from noise. By determining and eliminating image signals below a certain size as noise, it was confirmed that a read signal error rate below 10-3, a standard for practical applications, could be achieved. In this work, it was verified that with recording layers with a gap of 60-microm between layers, 50 layers can be recorded and read on each side of a fused silica disc, giving a total of 100 layers. The results showed indicated a recording density of 1.5 GB/inch2, comparable to that of a Blu-ray disc is possible using fused silica glass, and the potential for even greater numbers of layers.

Hitachi will continue to conduct tests to verify improved recording density for practical application. These results was presented at the ISOM 2014 in Taiwan.

Furthermore, making use of the 300 million year storage lifetime found with fused silica glass, a fused silica glass lithograph is set to accompany an upcoming space launch. The fused silica glass lithograph featuring images and a message for 300 million years in the future will be mounted on the ‘Shin-en 2’ miniature payload of the Hayabusa 2 rocket developed by the Kyushu Institute of Technology and Kagoshima University (3).

(1) Computed tomography: Several projection images can be obtained from a rotating fused silica plate by irradiating the plate using a light-emitting diode as a visible light source, and computing to restore the tomographic image.

(2) Femtosecond pulse laser: The duration of one pulse from a laser is referred to as the pulse width. A femtosecond pulse laser is a laser which has reduced the pulse width to about 10-13s or less.

(3) Announcements regarding the space launch were made by the Kyushu Institute of Technology on September 1st, and by Kagoshima University on October 17th.
