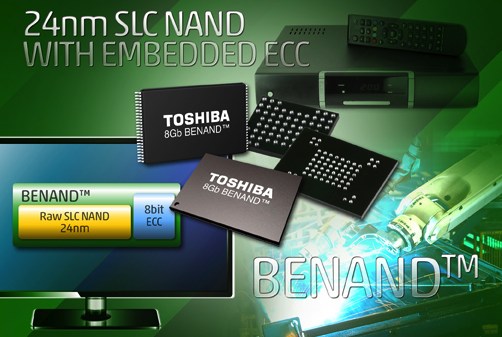

Toshiba Revealing 24nm 8Gb SLC BENAND Flash Memory

Toshiba Electronics Europe (TEE) has expanded its range of 24nm BENAND SLC NAND flash memory with embedded 8bit error correction (ECC).

The new 8Gb 24nm SLC BENAND enables manufacturers to utilise the 24nm technology in devices that were designed to use 4xnm NAND, extending the product life of consumer electronics, multimedia devices, smart meters, intelligent lighting systems and industrial technology.

BENAND removes the burden of ECC from the host processor and enables designers to utilize new process NAND flash technology. To ensure migration, the new BENAND have been designed so that features such as Page/Block size, spare area size, Commands, Interface and Package are kept the same as legacy 4xnm SLC NAND.

The price of NAND flash memory made at advanced process nodes is reduced, but the smaller cells become more vulnerable to program/erase stresses. This requires more complex ECC to maintain the desired levels of reliability – for example small density 4xnm SLC NAND requires 1bit ECC, 3xnm SLC NAND requires 4bit ECC and 2xnm SLC NAND requires 8bit ECC.

ECC has traditionally been built into the host controllers, often making switching to newer, more cost effective NAND an expensive and time-consuming task as the host processor must be changed to enable the required level of error correction. However, BENAND rewrites this paradigm by moving the ECC onto the NAND chip and enabling legacy controllers to be used with the latest NAND technology – reducing BOM and system design costs while maintaining the high reliability of SLC NAND.

This introduction of 8Gb extends the line-up of BENAND from 1Gb to 8Gb, which is available in TSOP and BGA packages and in industrial and consumer operating temperature ranges.
