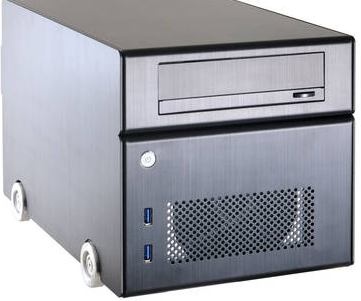

Lian Li Reveals Mini-Tower Chassis for Mobile Storage

Lian Li LianLi Industrial Co. Ltd, an aluminum computer chassis manufacturer, announces the automobile-esque PC-Q15.

With its space-saving design, the PC-Q15 is a data storage center for the hi-tech mobile devices of the mobile consumer.

Supporting mini-ITX motherboard, the PC-Q15 with its the rectangular shape and wheel-like stubs resembles a miniature SUV. This chassis stand out in any environment, and the dimensions of (WxHxD) 210mm x 216mm x 330mm (8.27" x 8.50" x 12.99") allows it to serve as the home central hub for the modern mobile user.

With optical drive support and multiple HDD/SSD drive bays, the PC-Q15 gives users options for storage. The forward facing 5.25" drive bay is at the top on the chassis with the 3.5" and 2.5" drive bays hanging below it. The hot-swappable 3.5" HDD is aided by sized rubber strips that are attached to the side of the 3.5" drive, allowing you to take HDD in and out. Hanging below the 3.5" drive, the 2.5" drive bay holds three 2.5" HDDs/SSDs and can be adjusted to face the front or side.

The motherboard plate lays flat against the bottom of the chassis. A prerouted cable simplifies connections between the motherboard and the the two USB 3.0 ports on the front panel. Keeping your system at optimum running temperatures, the included 120mm fan removable washable filter blows cool air directly across the motherboard and 2.5" SSDs.

The compact PC-Q15 supports VGA cards up to 250mm (9.84") in length and CPU coolers with a height of up to 90mm (3.54"). The included 300W power supply with 80-plus efficiency sits at the top rear of the chassis providing power to components.

Wheel-like stubs with rubber strips not only keep the this chassis elevated, but also reduces vibrations. The PC-Q15 is constructed from aluminum, and features pop-off panels for access to your system.

Specifications

• Case Type: Mini tower chassis
• Dimensions: (W) 210mm x (H) 216mm x (D) 330mm (8.27" x 8.50" x 12.99")
• Front Bezel Material: Aluminum
• Color: Black/Silver
• Side Panel: Aluminum
• Body Material: Aluminum
• Net Weight: 3.3kg
• 5.25" drive bay (External): 1
• HDD bay: 3.5-inch HDD x 1 (hotswap) / 2.5-Inch HDD x 3
• Expansion Slot: 1
• Motherboard: Mini-ITX
• System Fan (Front): 120mm Fan x 1
• I/O Ports: USB 3.0 x 2
• Compatibility: VGA Card length, 250mm; CPU cooler height, 90mm
• Power Supply: Micro-ATX PSU/OPTPUT: 300W / Efficiency: 80% (80-PLUS) included

The Lian Li PC-Q15 is available in silver and back for the suggested retail price of US$179 or €179.
