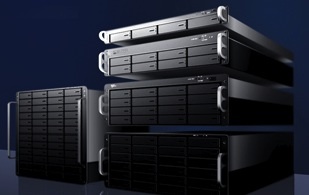

Sans Digital 64b NAS Solutions

From Sans Digital, EliteNAS series is a network storage appliance equipped with optimized 64 bit NAS OS dedicated for storage centric applications, featuring performance, file-sharing and file-serving.

It is designed and built with the concept of ‘True Storage Appliance’ should be for data availability and redundancy. It unifies NAS and iSCSI/IP-SAN functionalities with Fibre Channel support into one single device, so that IT staffs no longer need to make a choice between NAS or iSCSI. EliteNAS series also aggregates and virtualizes external storage devices such as: DAS, Fibre Channel, or remote iSCSI targets, and presents them as a single device to the network clients.

Features include:

• Efficient OS based on 64 bit NAS OS
• An intriguing Web GUI menu.
• High file transfer rate for all types of protocols: NFS, AFP, CIFS, FTP, and iSCSI
• Robust Journaling File Systems V XFS
• File-sharing for clients in heterogeneous or mixed OS platforms is supported.
• Support Teaming over 2 or more Gigabit NICs
• Supports 7 modes of network port bonding: Teaming for Load-Balancing & Fail-Over, 802.3ad
• Support 10Gb NICs
• Support 6G SAS / SATA Hard Drives
• Support storage expansion via direct-attach external RAID, JBODs, or via remote iSCSI targets
• Multiple Volume Snapshots, Schedulable and On-Demand
• NAS-to-NAS Folder Replications: Scheduled Differential and Scheduled Full Copy with Compression
• Include iSCSI target & initiator functions for IP-SAN infrastructure
• Remote system monitoring for Fan status, Temperatures, RAID status, HDD status, Network connectivity status
• Optional Server Failover Mirroring and Active-Active Cluster mode supported

EliteNAS EN104L+B
EliteNAS EN104L+BXE

• 1U 4 Bay NAS
• 12TB of total storage, supporting RAID 0, 1, 1+0, 5   and 6.
• Intel ATOM / Dual Core Processor.
• 1GB / 2G DDR2 memory; upgradeable to 4GB.
• Supports 3TB SATA hard drive.
• Includes iSCSI target & initiator functions for IP-SAN   infrastructure.

EliteNAS EN208L+BXE

• 2U 8 Bay NAS
• 24TB in a 2U rackmount, optional expansion module with up to 120 drives.
• Operating system specific design for NAS and iSCSI application
• 2GB ECC DDR-2 memory
• Hardware RAID controller card
• Optional 10GbE Ethernet controller card for 10GbE network.

EliteNAS EN212L+BXE

• 2U 12 Bay NAS
• 36TB in a single rackmount. Expandable to 120 drives or 360 TB total storage.
• Intel Nehalem Xeon Quad-Core processor.
• 3GB ECC DDR-3 memory in Triple Channel.
• 1200MHz Hardware RAID controller card.
• Support 6G SAS and SATA Hard drives.
• High file transfer rate for all types of protocols: NFS, AFP, CIFS, FTP, and iSCSI.

EliteNAS EN316L+BXE

• 3U 16 Bay NAS
• 48TB in a single rackmount. Expandable to 120 drives or 360 TB total storage.
• Support 6G SAS and SATA Hard drives.
• Optional 10GbE Ethernet controller card for 10GbE network.
• OS on DOM (Disk-on-Module) without mechanical wear and tear.
• Robust Journaling File Systems – XFS.
• Built-in iSCSI initiator.

EliteNAS EN424L+BXE

• 4U 24 Bay NAS
• 72TB in a single rackmount. Expandable to 120 drives or 360 TB total storage.
• Support Teaming over 2 or more Gigabit NICs.
• Multiple Volume Snapshots, Schedulable and On-Demand.
• An intriguing Web GUI Using Web Browser GUI can configure, access and monitor the NAS/iSCSI.
• Support 6G SAS and SATA Hard drives.
• File-sharing for clients in heterogeneous or mixed OS platforms is supported.

EliteNAS EN850L+BXE

• 8U 48 Bay NAS
• 144TB in a single rackmount. Expandable to 240 drives or 480 TB total storage.
• Dual Intel Nehalem Xeon Quad-Core processor.
• 6GB ECC DDR-3 memory in Triple Channel.
• Quad Gigabit Ethernet ports.
• Dual 1200MHz Hardware RAID controller card (72TB volume per controller)
