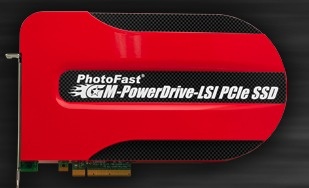

PhotoFast GM-PowerDrive-LSI PCIe SSD

PhotoFast Global Inc. launches the GM-PowerDrive-LSI PCIe SSD, a storage device with PCI-Express 2.0 x 8 and available in 256GB/512GB/1TB of storage capacity. The Drive is stated to offer maximum read and write speeds of up to 1400 MB/sec. and 1500 MB/sec respectively.

It supports 512-Mbyte DDR2 800MHz on-board SDRAM cache memory.

GM-PowerDrive-LSI PCIe SSD Features

• Hardware based RAID controller
• PCI-Express 2.0 x 8
• Max. read up to 1400MB/s
• Max. write up to 1500MB/s
• Compliant with RoHS directive
• CE and FCC compatibility
• Weight: 1100g 10g
• Dimensions: 53.38mmx149.3mmx230mm
• Input Voltage: 12V, 5V ± 5%
• Host Bus Interface: PCI-Express 2.0 x 8
• Capacity: 240GB / 480GB / 960GB
• Data Buffer: 512MB ECC DDR II and SDRAM Memory
• MLC flash supported
• Read: 1400MB/s
• Write: 1500MB/s
• Operatong Temperature: 0°C ~ 70°C
• Storage Temperature: -40°C ~ 85°C
• Operation vibration: 20G Peak
• Storage vibration: 20G Peak
• Operation shock: 1300G
• Storage shock: 1300G
• Operating Humidity (Non Condensation): 5% to 95%
• Storage Humidity (Non Condensation): 5% to 95%
• Data Retention: 5 years
• MTBF: 1,500,000 Hours
• High reliability based on the internal BCH 15bit ECC (Error Code Correction) technology
