Thecus Rackmount N8910 2U 8-Bay NAS

Two GbE LAN ports, one HDMI output, four USB 3.0 and two USB 2.0 ports

Thecus Technology Corp announced the expansion of its rackmount NAS line up with the addition of the N8910.

This 2U rackmount delivers scalability, tspeed for data-intensive applications with reliability for service continuity. It provides a storage solution for SMB businesses that face escalating data workloads.

The N8910 delivers on the key attributes that companies seek from a server, a robust hardware platform, capacity to handle rigorous day-to-day operations, with ensured data protection for unwavering security,” said Florence Shih, GM, Thecus.

The N8910 leverages a Skylake Core i3 6100 Dual Core 3.7GHz processor, with 4GB of DDR4 ECC SDRAM, which can be expanded to 64GB. This NAS features AES 256-bit full NAS volume encryption to improve overall system performance when protecting file transfers. This model has 10GbE capability and supports HA for system redundancy, with capacity for massive expansion with scale-Out technology.

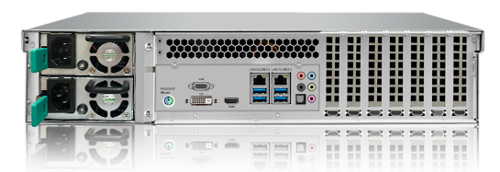

Thecus N8910 NAS front and rear

The N8910 is easily navigated with the ThecusOS7. With an intuitive user interface, users can access data and desired applications, monitor system information and run multiple tasks simultaneously. The Thecus App center offers applications including file management, sharing, backup, and synchronization.

Key specs:

  • Core i3 6100 Dual Core 3.7GHz processor+ Intel C236 chipset, 4GB DDR4 RAM (expandable to 64GB).

  • Supports 8×3.5”/2.5” HDD/SSDs, hot-swapping as well as migration to a new firm’s NAS.

  • Two GbE LAN ports; one HDMI output; four USB 3.0 ports, two USB 2.0 ports.

  • Cloud backup to Dropbox, ElephantDrive and Amazon S3. With backup features including local and remote backups,

  • System failover, and snapshot backup using the Btrfs file system.

  • Capacity for expansion with scale-out technology.

The N8910 will be available to the global market at the end of June.

Hardware Platform Specs:

Item Spec
Processor Intel Skylake Core-i3 6100 3.7GHz Dual Core Processor + Intel C236 chipset
Processor Compatible with Intel Skylake Celeron /Pentium /Core i3_i5_i7 / XEON
**Note: For special OEM/Project only.
System Memory 4GB DDR4 ECC SDRAM shipped
Memory expandable up to 64GB Memory Compatibility List
LAN Interface (PCIe) RJ-45×2 :Auto MDI/MDI-X
WOL supported
USB Interface USB 2.0 host port x2 (front x2)
USB 3.0 host port x4 (back x4)
VGA/DVI/HDMI output Supported
Audio(5+1), SPDIF Supported
K/B and Mouse (PS2) Supported
LCM Displays system status and information
LED indicator Power: (blue)
System busy: (yellow)
System alert : Redundant power or system fan failure (red)
HDD 1-8 Activity/Fail (green/red)
Available PCIe slots PCIe x16 (x1) or PCIe x8 (x2)
PCIe x4 (x1)
PCIe x1 (x1)
Power Supply 500W redundant power supply (80plus)
Disk interface SATA (x8) via backplane
Environment Temperature : 0°C to 40°C (operation)
                  -40°C to 70°C (non-operation)
Humidity : 0 ~ 80 % R.H. (non-condensing)
Chassis 2U rackmount
Dimension 89x482x649mm
