Adata IM2P3388 PCIe Gen3x4 M.2 2280 Industrial-Grade SSD

ADATA Technology Co., Ltd. launched the industrial-grade IM2P3388 PCIe Gen3x4 M.2 2280 SSD.

It employs 3D MLC NAND flash and an SMI controller to deliver performance several times faster than SATA III SSDs, with read up to 2,500MB/s and write reaching 1,100MB/s.

The M.2 2280 form factor fits in the IT setup of industrial and enterprise users, while the IM2P3388 can withstand a wide temperature range, shocks, and vibration. It is offered in up to 1TB and supports features such as S.M.A.R.T, TRIM, power fail protection, and secure erase.

Fast 3D MLC NAND M.2 SSD
The IM2P3388 complies with NVMe 1.2 specifications to provide performance optimized for low latency, big bandwidth PCIe 3.0 x4 (four lanes). Users tap up to 2,500MB/s read and 1,100MB/s write, accelerating data transfers to help increase productivity and efficiency. The company is offering the IM2P3388 in 128, 256, 512GB, and 1TB. All models carry 3D MLC NAND that has been sorted, tested, and verified to high standards. SLC and DRAM caching provide speed boosts for sustained performance during the most intense activity sessions, preventing bandwidth or IO/s drop offs.

Reinforced for industrial applications
In addition to a temperature range of -40° to 90° Celsius, the IM2P3388 is also rated for 20G vibration resistance and 1,500G/0.5ms shock tolerance. It can work normally in diverse climates, notably relative humidity of 5% to 95%. It undergoes extensive testing to ensure EMI and ESD proofing. To protect data around the clock, it has sensors to monitor its status, covering estimated lifespan, power failure prevention, and data recovery. With the firm’s SSD Toolbox app, it supports secure erase to permanently remove sensitive data, wear leveling to promote balanced flash utilization, and TCG Opal 2.0 encryption for improved data security and privacy protection.

Paving way for greater SSD adoption
Traditionally, industrial users had to compromise capacity to get storage durability and performance. The IM2P3388 signals a continued shift towards the integration of high speed, compact, and capacity M.2 SSD products in sectors such as manufacturing, data centers, surveillance, and transportation.

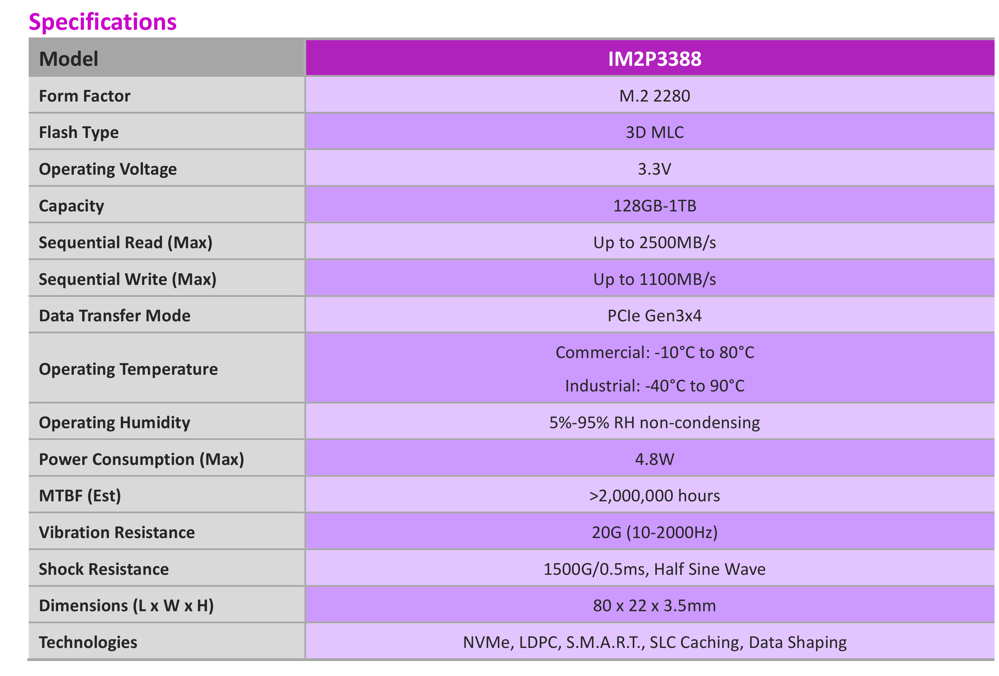

Click to enlarge
